Definition Type: Element
Name: prstGeom
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_PresetGeometry2D
Containing Schema: dml-shapeGeometry.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Preset geometry
Collapse XSD Schema Diagram:

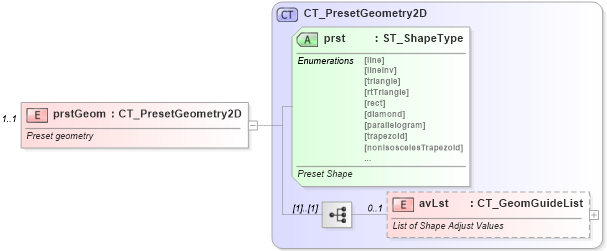

Drilldown into avLst in schema dml-shapegeometry_xsd Drilldown into prst in schema dml-shapegeometry_xsd Drilldown into CT_PresetGeometry2D in schema dml-shapegeometry_xsdXSD Diagram of prstGeom in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="prstGeom" type="CT_PresetGeometry2D" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Preset geometry</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
avLst a:avLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
prst a:prst Required
Collapse Derivation Tree:
