Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: queryTableField
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_QueryTableField
Containing Schema: sml-queryTable.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
QueryTable Field

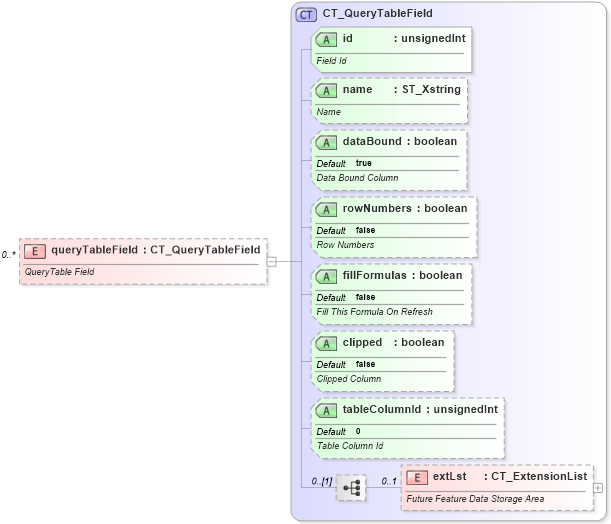

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-querytable_xsd Drilldown into tableColumnId in schema sml-querytable_xsd Drilldown into clipped in schema sml-querytable_xsd Drilldown into fillFormulas in schema sml-querytable_xsd Drilldown into rowNumbers in schema sml-querytable_xsd Drilldown into dataBound in schema sml-querytable_xsd Drilldown into name in schema sml-querytable_xsd Drilldown into id in schema sml-querytable_xsd Drilldown into CT_QueryTableField in schema sml-querytable_xsdXSD Diagram of queryTableField in schema sml-querytable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="queryTableField" type="CT_QueryTableField" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>QueryTable Field</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsM:id Required
name nsM:name Optional
dataBound nsM:dataBound true Optional
rowNumbers nsM:rowNumbers false Optional
fillFormulas nsM:fillFormulas false Optional
clipped nsM:clipped false Optional
tableColumnId nsM:tableColumnId 0 (Optional)
Collapse Derivation Tree:
