Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: rfmt
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_RevisionFormatting
Containing Schema: sml-sharedWorkbookRevisions.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Revision Format

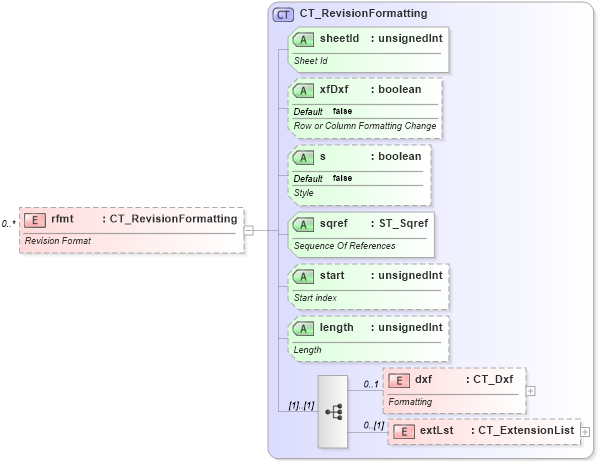

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sharedworkbookrevisions_xsd Drilldown into dxf in schema sml-sharedworkbookrevisions_xsd Drilldown into length in schema sml-sharedworkbookrevisions_xsd Drilldown into start in schema sml-sharedworkbookrevisions_xsd Drilldown into sqref in schema sml-sharedworkbookrevisions_xsd Drilldown into s in schema sml-sharedworkbookrevisions_xsd Drilldown into xfDxf in schema sml-sharedworkbookrevisions_xsd Drilldown into sheetId in schema sml-sharedworkbookrevisions_xsd Drilldown into CT_RevisionFormatting in schema sml-sharedworkbookrevisions_xsdXSD Diagram of rfmt in schema sml-sharedworkbookrevisions_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="rfmt" type="CT_RevisionFormatting" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Revision Format</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dxf nsM:dxf 0 1
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
sheetId nsM:sheetId Required
xfDxf nsM:xfDxf false Optional
s nsM:s false Optional
sqref nsM:sqref Required
start nsM:start Optional
length nsM:length Optional
Collapse Derivation Tree:
