Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: rrc
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_RevisionRowColumn
Containing Schema: sml-sharedWorkbookRevisions.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Revision Row Column Insert Delete

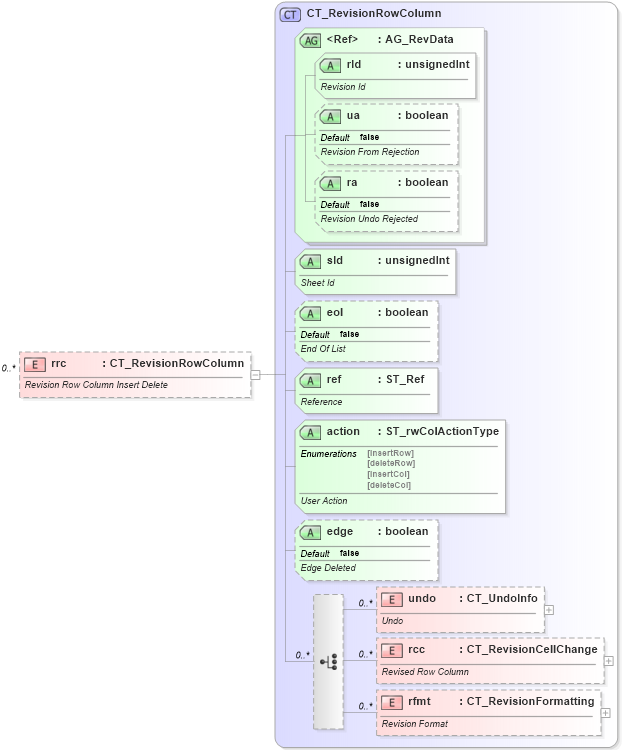

Collapse XSD Schema Diagram:
Drilldown into rfmt in schema sml-sharedworkbookrevisions_xsd Drilldown into rcc in schema sml-sharedworkbookrevisions_xsd Drilldown into undo in schema sml-sharedworkbookrevisions_xsd Drilldown into edge in schema sml-sharedworkbookrevisions_xsd Drilldown into action in schema sml-sharedworkbookrevisions_xsd Drilldown into ref in schema sml-sharedworkbookrevisions_xsd Drilldown into eol in schema sml-sharedworkbookrevisions_xsd Drilldown into sId in schema sml-sharedworkbookrevisions_xsd Drilldown into ra in schema sml-sharedworkbookrevisions_xsd Drilldown into ua in schema sml-sharedworkbookrevisions_xsd Drilldown into rId in schema sml-sharedworkbookrevisions_xsd Drilldown into AG_RevData in schema sml-sharedworkbookrevisions_xsd Drilldown into CT_RevisionRowColumn in schema sml-sharedworkbookrevisions_xsdXSD Diagram of rrc in schema sml-sharedworkbookrevisions_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="rrc" type="CT_RevisionRowColumn" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Revision Row Column Insert Delete</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
undo nsM:undo 0 unbounded
rcc nsM:rcc 0 unbounded
rfmt nsM:rfmt 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
rId nsM:rId Required
ua nsM:ua false Optional
ra nsM:ra false Optional
sId nsM:sId Required
eol nsM:eol false Optional
ref nsM:ref Required
action nsM:action Required
edge nsM:edge false Optional
Collapse Derivation Tree:
