Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: Schema
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Schema
Containing Schema: sml-customXmlMappings.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract
Documentation:
XML Schema
Collapse XSD Schema Diagram:

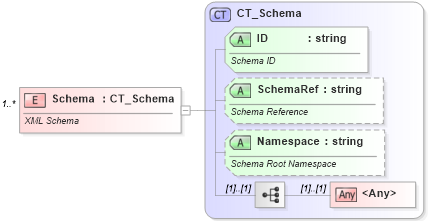

Drilldown into Namespace in schema sml-customxmlmappings_xsd Drilldown into SchemaRef in schema sml-customxmlmappings_xsd Drilldown into ID in schema sml-customxmlmappings_xsd Drilldown into CT_Schema in schema sml-customxmlmappings_xsdXSD Diagram of Schema in schema sml-customxmlmappings_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="Schema" type="CT_Schema" minOccurs="1" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>XML Schema</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsM:ID Required
SchemaRef nsM:SchemaRef Optional
Namespace nsM:Namespace Optional
Collapse Derivation Tree:
