Definition Type: Element
Name: sp
Namespace: http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing
Type: nsF:CT_Shape
Containing Schema: dml-spreadsheetDrawing.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Shape

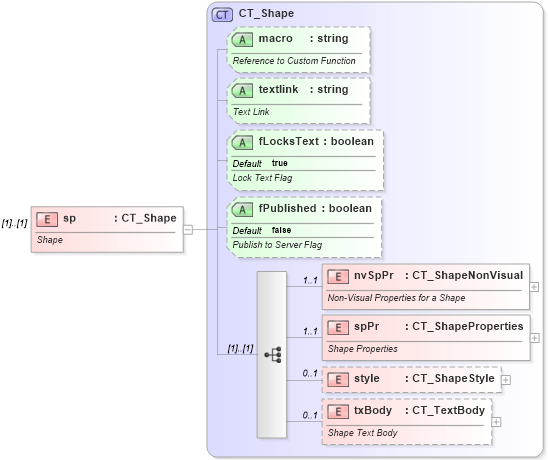

Collapse XSD Schema Diagram:
Drilldown into txBody in schema dml-spreadsheetdrawing_xsd Drilldown into style in schema dml-spreadsheetdrawing_xsd Drilldown into spPr in schema dml-spreadsheetdrawing_xsd Drilldown into nvSpPr in schema dml-spreadsheetdrawing_xsd Drilldown into fPublished in schema dml-spreadsheetdrawing_xsd Drilldown into fLocksText in schema dml-spreadsheetdrawing_xsd Drilldown into textlink in schema dml-spreadsheetdrawing_xsd Drilldown into macro in schema dml-spreadsheetdrawing_xsd Drilldown into CT_Shape in schema dml-spreadsheetdrawing_xsdXSD Diagram of sp in schema dml-spreadsheetdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="sp" type="CT_Shape">
    <xsd:annotation>
        <xsd:documentation>Shape</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvSpPr nsF:nvSpPr 1 1
spPr nsF:spPr 1 1
style nsF:style 0 1
txBody nsF:txBody 0 1
Collapse Child Attributes:
Name Type Default Value Use
macro nsF:macro Optional
textlink nsF:textlink Optional
fLocksText nsF:fLocksText true Optional
fPublished nsF:fPublished false Optional
Collapse Derivation Tree:
