Definition Type: Element
Name: stroke
Namespace: urn:schemas-microsoft-com:vml
Type: v:CT_Stroke
Containing Schema: vml-main.xsd
Abstract
Documentation:
Line Stroke Settings
Collapse XSD Schema Diagram:

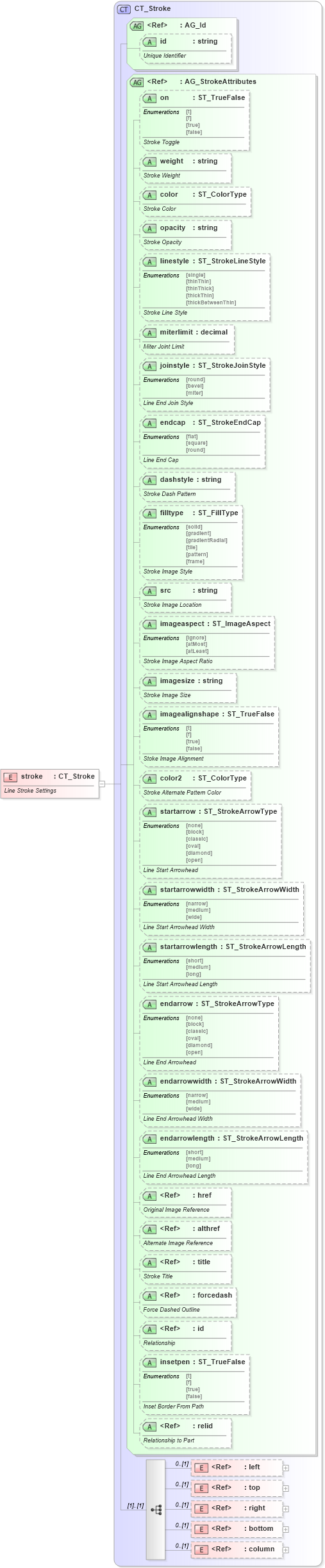

Drilldown into column in schema vml-officedrawing_xsd Drilldown into bottom in schema vml-officedrawing_xsd Drilldown into right in schema vml-officedrawing_xsd Drilldown into top in schema vml-officedrawing_xsd Drilldown into left in schema vml-officedrawing_xsd Drilldown into relid in schema vml-officedrawing_xsd Drilldown into insetpen in schema vml-main_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into forcedash in schema vml-officedrawing_xsd Drilldown into title in schema vml-officedrawing_xsd Drilldown into althref in schema vml-officedrawing_xsd Drilldown into href in schema vml-officedrawing_xsd Drilldown into endarrowlength in schema vml-main_xsd Drilldown into endarrowwidth in schema vml-main_xsd Drilldown into endarrow in schema vml-main_xsd Drilldown into startarrowlength in schema vml-main_xsd Drilldown into startarrowwidth in schema vml-main_xsd Drilldown into startarrow in schema vml-main_xsd Drilldown into color2 in schema vml-main_xsd Drilldown into imagealignshape in schema vml-main_xsd Drilldown into imagesize in schema vml-main_xsd Drilldown into imageaspect in schema vml-main_xsd Drilldown into src in schema vml-main_xsd Drilldown into filltype in schema vml-main_xsd Drilldown into dashstyle in schema vml-main_xsd Drilldown into endcap in schema vml-main_xsd Drilldown into joinstyle in schema vml-main_xsd Drilldown into miterlimit in schema vml-main_xsd Drilldown into linestyle in schema vml-main_xsd Drilldown into opacity in schema vml-main_xsd Drilldown into color in schema vml-main_xsd Drilldown into weight in schema vml-main_xsd Drilldown into on in schema vml-main_xsd Drilldown into AG_StrokeAttributes in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsd Drilldown into CT_Stroke in schema vml-main_xsdXSD Diagram of stroke in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="stroke" type="CT_Stroke">
    <xsd:annotation>
        <xsd:documentation>Line Stroke Settings</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
left o:left 0 (1)
top o:top 0 (1)
right o:right 0 (1)
bottom o:bottom 0 (1)
column o:column 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
on v:on Optional
weight v:weight Optional
color v:color Optional
opacity v:opacity Optional
linestyle v:linestyle Optional
miterlimit v:miterlimit Optional
joinstyle v:joinstyle Optional
endcap v:endcap Optional
dashstyle v:dashstyle Optional
filltype v:filltype Optional
src v:src Optional
imageaspect v:imageaspect Optional
imagesize v:imagesize Optional
imagealignshape v:imagealignshape Optional
color2 v:color2 Optional
startarrow v:startarrow Optional
startarrowwidth v:startarrowwidth Optional
startarrowlength v:startarrowlength Optional
endarrow v:endarrow Optional
endarrowwidth v:endarrowwidth Optional
endarrowlength v:endarrowlength Optional
href o:href (Optional)
althref o:althref (Optional)
title o:title (Optional)
forcedash o:forcedash (Optional)
id r:id Optional
insetpen v:insetpen Optional
relid o:relid (Optional)
