Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: styleDef
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_StyleDefinition
Containing Schema: dml-diagramStyleDefinition.xsd
Abstract
Documentation:
Style Definition
Collapse XSD Schema Diagram:

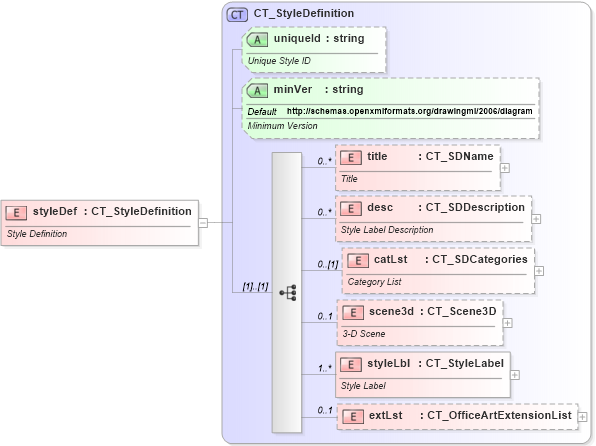

Drilldown into extLst in schema dml-diagramstyledefinition_xsd Drilldown into styleLbl in schema dml-diagramstyledefinition_xsd Drilldown into scene3d in schema dml-diagramstyledefinition_xsd Drilldown into catLst in schema dml-diagramstyledefinition_xsd Drilldown into desc in schema dml-diagramstyledefinition_xsd Drilldown into title in schema dml-diagramstyledefinition_xsd Drilldown into minVer in schema dml-diagramstyledefinition_xsd Drilldown into uniqueId in schema dml-diagramstyledefinition_xsd Drilldown into CT_StyleDefinition in schema dml-diagramstyledefinition_xsdXSD Diagram of styleDef in schema dml-diagramstyledefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="styleDef" type="CT_StyleDefinition">
    <xsd:annotation>
        <xsd:documentation>Style Definition</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title nsC:title 0 unbounded
desc nsC:desc 0 unbounded
catLst nsC:catLst 0 (1)
scene3d nsC:scene3d 0 1
styleLbl nsC:styleLbl 1 unbounded
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
uniqueId nsC:uniqueId Optional
minVer nsC:minVer http://schemas.openxmlformats.org/drawingml/2006/diagram Optional
Collapse Derivation Tree:
