Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: tbl
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Type: w:CT_Tbl
Containing Schema: wml.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Table

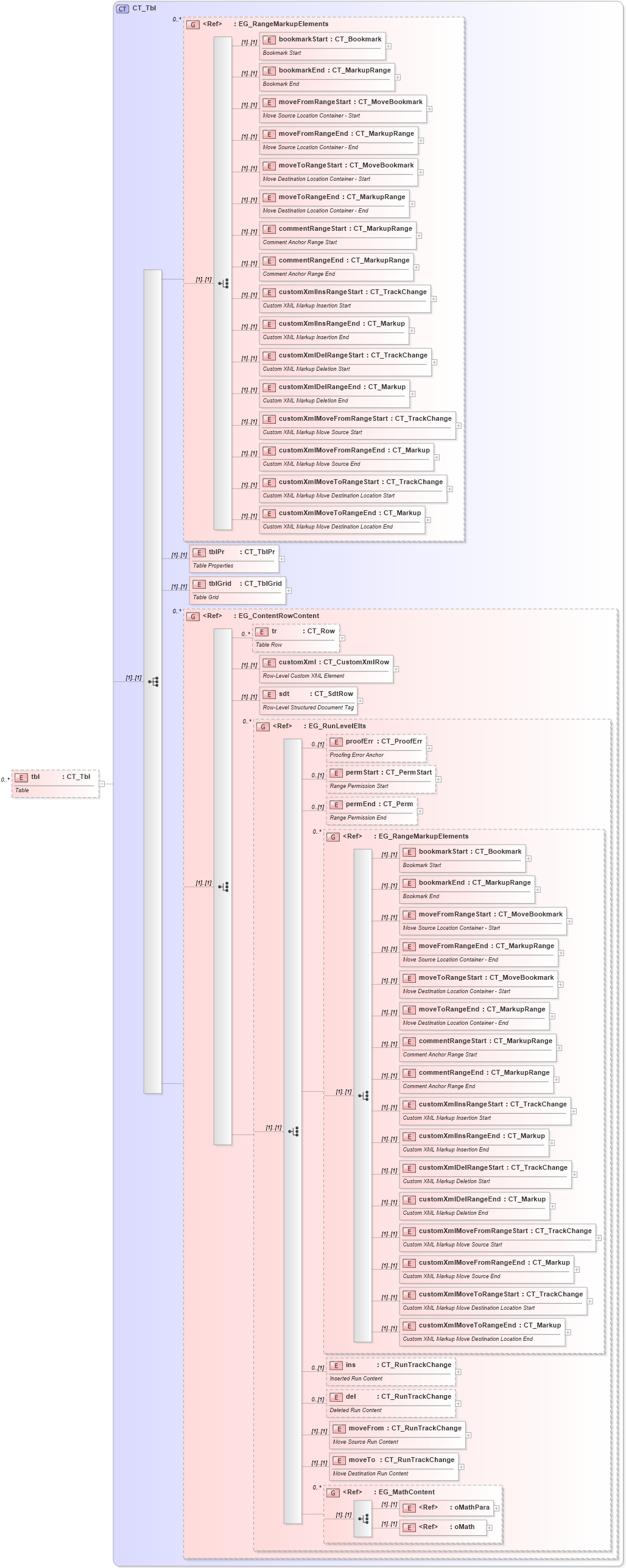

Collapse XSD Schema Diagram:
Drilldown into oMath in schema shared-math_xsd Drilldown into oMathPara in schema shared-math_xsd Drilldown into EG_MathContent in schema wml_xsd Drilldown into moveTo in schema wml_xsd Drilldown into moveFrom in schema wml_xsd Drilldown into del in schema wml_xsd Drilldown into ins in schema wml_xsd Drilldown into customXmlMoveToRangeEnd in schema wml_xsd Drilldown into customXmlMoveToRangeStart in schema wml_xsd Drilldown into customXmlMoveFromRangeEnd in schema wml_xsd Drilldown into customXmlMoveFromRangeStart in schema wml_xsd Drilldown into customXmlDelRangeEnd in schema wml_xsd Drilldown into customXmlDelRangeStart in schema wml_xsd Drilldown into customXmlInsRangeEnd in schema wml_xsd Drilldown into customXmlInsRangeStart in schema wml_xsd Drilldown into commentRangeEnd in schema wml_xsd Drilldown into commentRangeStart in schema wml_xsd Drilldown into moveToRangeEnd in schema wml_xsd Drilldown into moveToRangeStart in schema wml_xsd Drilldown into moveFromRangeEnd in schema wml_xsd Drilldown into moveFromRangeStart in schema wml_xsd Drilldown into bookmarkEnd in schema wml_xsd Drilldown into bookmarkStart in schema wml_xsd Drilldown into EG_RangeMarkupElements in schema wml_xsd Drilldown into permEnd in schema wml_xsd Drilldown into permStart in schema wml_xsd Drilldown into proofErr in schema wml_xsd Drilldown into EG_RunLevelElts in schema wml_xsd Drilldown into sdt in schema wml_xsd Drilldown into customXml in schema wml_xsd Drilldown into tr in schema wml_xsd Drilldown into EG_ContentRowContent in schema wml_xsd Drilldown into tblGrid in schema wml_xsd Drilldown into tblPr in schema wml_xsd Drilldown into customXmlMoveToRangeEnd in schema wml_xsd Drilldown into customXmlMoveToRangeStart in schema wml_xsd Drilldown into customXmlMoveFromRangeEnd in schema wml_xsd Drilldown into customXmlMoveFromRangeStart in schema wml_xsd Drilldown into customXmlDelRangeEnd in schema wml_xsd Drilldown into customXmlDelRangeStart in schema wml_xsd Drilldown into customXmlInsRangeEnd in schema wml_xsd Drilldown into customXmlInsRangeStart in schema wml_xsd Drilldown into commentRangeEnd in schema wml_xsd Drilldown into commentRangeStart in schema wml_xsd Drilldown into moveToRangeEnd in schema wml_xsd Drilldown into moveToRangeStart in schema wml_xsd Drilldown into moveFromRangeEnd in schema wml_xsd Drilldown into moveFromRangeStart in schema wml_xsd Drilldown into bookmarkEnd in schema wml_xsd Drilldown into bookmarkStart in schema wml_xsd Drilldown into EG_RangeMarkupElements in schema wml_xsd Drilldown into CT_Tbl in schema wml_xsdXSD Diagram of tbl in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="tbl" type="CT_Tbl" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Table</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bookmarkStart w:bookmarkStart (1) (1)
bookmarkEnd w:bookmarkEnd (1) (1)
moveFromRangeStart w:moveFromRangeStart (1) (1)
moveFromRangeEnd w:moveFromRangeEnd (1) (1)
moveToRangeStart w:moveToRangeStart (1) (1)
moveToRangeEnd w:moveToRangeEnd (1) (1)
commentRangeStart w:commentRangeStart (1) (1)
commentRangeEnd w:commentRangeEnd (1) (1)
customXmlInsRangeStart w:customXmlInsRangeStart (1) (1)
customXmlInsRangeEnd w:customXmlInsRangeEnd (1) (1)
customXmlDelRangeStart w:customXmlDelRangeStart (1) (1)
customXmlDelRangeEnd w:customXmlDelRangeEnd (1) (1)
customXmlMoveFromRangeStart w:customXmlMoveFromRangeStart (1) (1)
customXmlMoveFromRangeEnd w:customXmlMoveFromRangeEnd (1) (1)
customXmlMoveToRangeStart w:customXmlMoveToRangeStart (1) (1)
customXmlMoveToRangeEnd w:customXmlMoveToRangeEnd (1) (1)
tblPr w:tblPr (1) (1)
tblGrid w:tblGrid (1) (1)
tr w:tr 0 unbounded
customXml w:customXml (1) (1)
sdt w:sdt (1) (1)
proofErr w:proofErr 0 (1)
permStart w:permStart 0 (1)
permEnd w:permEnd 0 (1)
ins w:ins 0 (1)
del w:del 0 (1)
moveFrom w:moveFrom (1) (1)
moveTo w:moveTo (1) (1)
oMathPara m:oMathPara (1) (1)
oMath m:oMath (1) (1)
<xs:group> w:EG_RangeMarkupElements 0 unbounded
<xs:group> w:EG_ContentRowContent 0 unbounded
<xs:group> w:EG_RunLevelElts 0 unbounded
<xs:group> w:EG_RangeMarkupElements 0 unbounded
<xs:group> w:EG_MathContent 0 unbounded
Collapse Derivation Tree:
