Definition Type: Element
Name: top10
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Top10
Containing Schema: sml-autoFilter.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Top 10

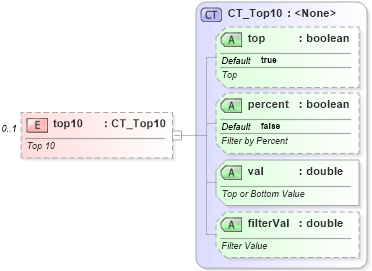

Collapse XSD Schema Diagram:
Drilldown into filterVal in schema sml-autofilter_xsd Drilldown into val in schema sml-autofilter_xsd Drilldown into percent in schema sml-autofilter_xsd Drilldown into top in schema sml-autofilter_xsd Drilldown into CT_Top10 in schema sml-autofilter_xsdXSD Diagram of top10 in schema sml-autofilter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="top10" type="CT_Top10" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Top 10</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
top nsM:top true Optional
percent nsM:percent false Optional
val nsM:val Required
filterVal nsM:filterVal Optional
Collapse Derivation Tree:
