Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: twoCellAnchor
Namespace: http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing
Type: nsF:CT_TwoCellAnchor
Containing Schema: dml-spreadsheetDrawing.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Two Cell Anchor Shape Size

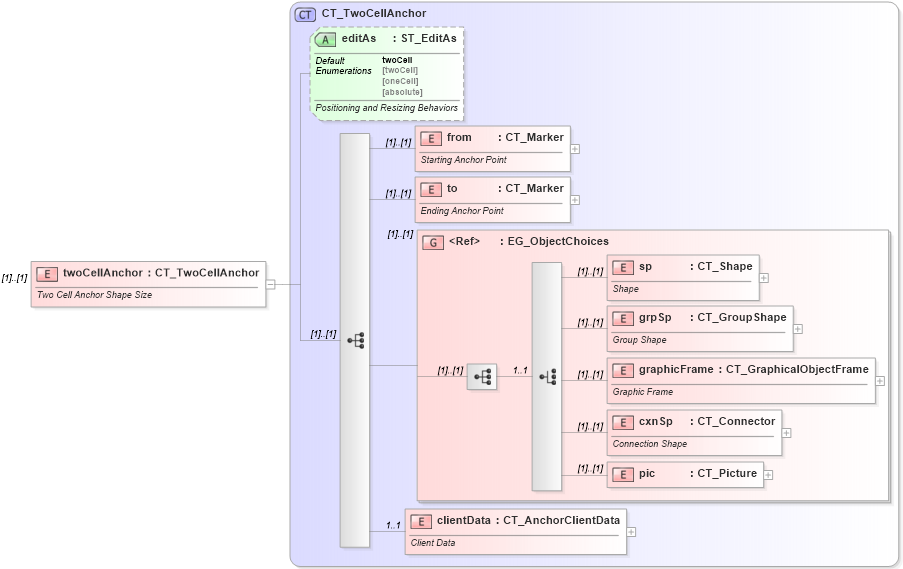

Collapse XSD Schema Diagram:
Drilldown into clientData in schema dml-spreadsheetdrawing_xsd Drilldown into pic in schema dml-spreadsheetdrawing_xsd Drilldown into cxnSp in schema dml-spreadsheetdrawing_xsd Drilldown into graphicFrame in schema dml-spreadsheetdrawing_xsd Drilldown into grpSp in schema dml-spreadsheetdrawing_xsd Drilldown into sp in schema dml-spreadsheetdrawing_xsd Drilldown into EG_ObjectChoices in schema dml-spreadsheetdrawing_xsd Drilldown into to in schema dml-spreadsheetdrawing_xsd Drilldown into from in schema dml-spreadsheetdrawing_xsd Drilldown into editAs in schema dml-spreadsheetdrawing_xsd Drilldown into CT_TwoCellAnchor in schema dml-spreadsheetdrawing_xsdXSD Diagram of twoCellAnchor in schema dml-spreadsheetdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="twoCellAnchor" type="CT_TwoCellAnchor">
    <xsd:annotation>
        <xsd:documentation>Two Cell Anchor Shape Size</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
from nsF:from (1) (1)
to nsF:to (1) (1)
sp nsF:sp (1) (1)
grpSp nsF:grpSp (1) (1)
graphicFrame nsF:graphicFrame (1) (1)
cxnSp nsF:cxnSp (1) (1)
pic nsF:pic (1) (1)
clientData nsF:clientData 1 1
<xs:group> nsF:EG_ObjectChoices (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
editAs nsF:editAs twoCell Optional
Collapse Derivation Tree:
