Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: webPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_WebPr
Containing Schema: sml-externalConnections.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Web Query Properties

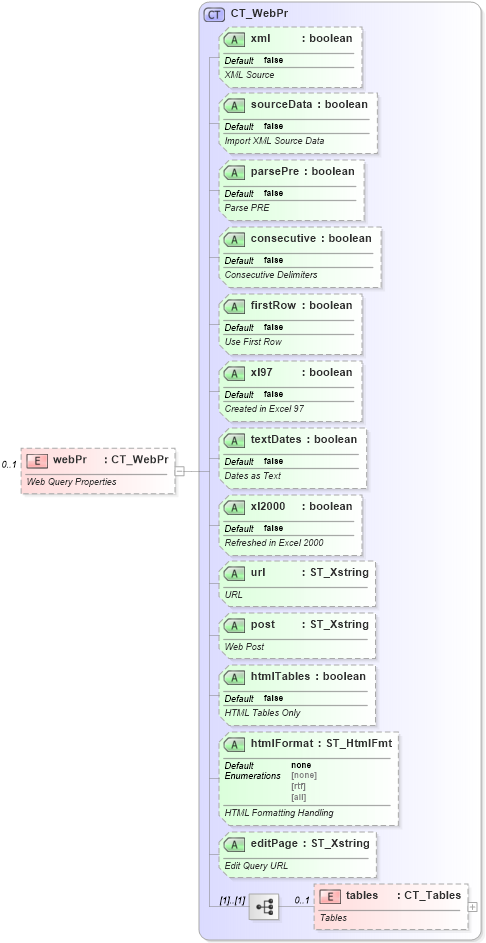

Collapse XSD Schema Diagram:
Drilldown into tables in schema sml-externalconnections_xsd Drilldown into editPage in schema sml-externalconnections_xsd Drilldown into htmlFormat in schema sml-externalconnections_xsd Drilldown into htmlTables in schema sml-externalconnections_xsd Drilldown into post in schema sml-externalconnections_xsd Drilldown into url in schema sml-externalconnections_xsd Drilldown into xl2000 in schema sml-externalconnections_xsd Drilldown into textDates in schema sml-externalconnections_xsd Drilldown into xl97 in schema sml-externalconnections_xsd Drilldown into firstRow in schema sml-externalconnections_xsd Drilldown into consecutive in schema sml-externalconnections_xsd Drilldown into parsePre in schema sml-externalconnections_xsd Drilldown into sourceData in schema sml-externalconnections_xsd Drilldown into xml in schema sml-externalconnections_xsd Drilldown into CT_WebPr in schema sml-externalconnections_xsdXSD Diagram of webPr in schema sml-externalconnections_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="webPr" minOccurs="0" maxOccurs="1" type="CT_WebPr">
    <xsd:annotation>
        <xsd:documentation>Web Query Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tables nsM:tables 0 1
Collapse Child Attributes:
Name Type Default Value Use
xml nsM:xml false Optional
sourceData nsM:sourceData false Optional
parsePre nsM:parsePre false Optional
consecutive nsM:consecutive false Optional
firstRow nsM:firstRow false Optional
xl97 nsM:xl97 false Optional
textDates nsM:textDates false Optional
xl2000 nsM:xl2000 false Optional
url nsM:url Optional
post nsM:post Optional
htmlTables nsM:htmlTables false Optional
htmlFormat nsM:htmlFormat none Optional
editPage nsM:editPage Optional
Collapse Derivation Tree:
