Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: workbook
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Workbook
Containing Schema: sml-workbook.xsd
Abstract
Documentation:
Workbook

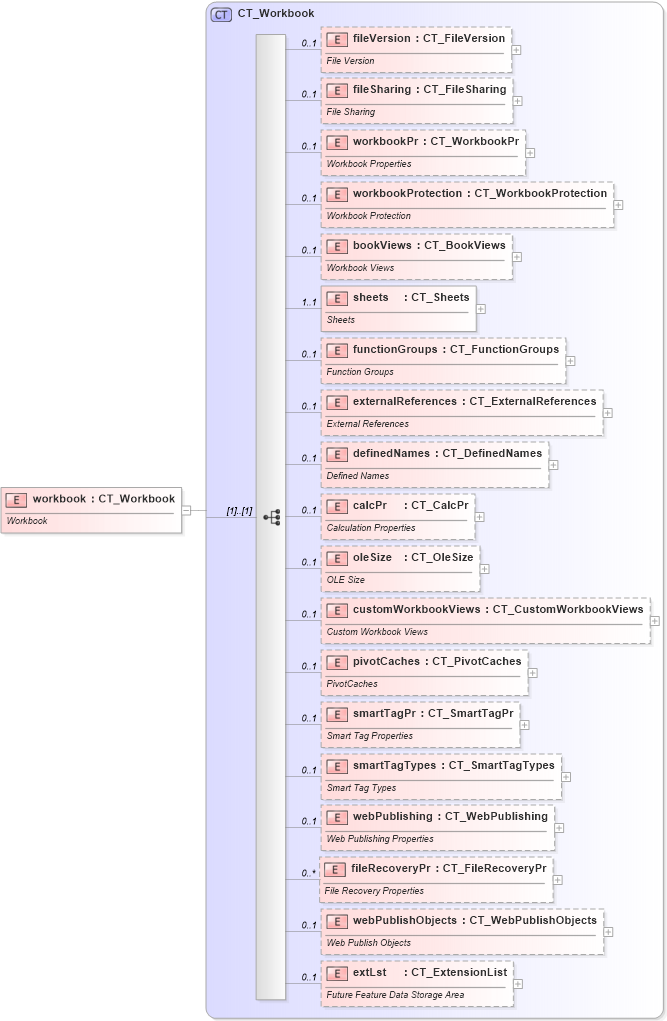

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-workbook_xsd Drilldown into webPublishObjects in schema sml-workbook_xsd Drilldown into fileRecoveryPr in schema sml-workbook_xsd Drilldown into webPublishing in schema sml-workbook_xsd Drilldown into smartTagTypes in schema sml-workbook_xsd Drilldown into smartTagPr in schema sml-workbook_xsd Drilldown into pivotCaches in schema sml-workbook_xsd Drilldown into customWorkbookViews in schema sml-workbook_xsd Drilldown into oleSize in schema sml-workbook_xsd Drilldown into calcPr in schema sml-workbook_xsd Drilldown into definedNames in schema sml-workbook_xsd Drilldown into externalReferences in schema sml-workbook_xsd Drilldown into functionGroups in schema sml-workbook_xsd Drilldown into sheets in schema sml-workbook_xsd Drilldown into bookViews in schema sml-workbook_xsd Drilldown into workbookProtection in schema sml-workbook_xsd Drilldown into workbookPr in schema sml-workbook_xsd Drilldown into fileSharing in schema sml-workbook_xsd Drilldown into fileVersion in schema sml-workbook_xsd Drilldown into CT_Workbook in schema sml-workbook_xsdXSD Diagram of workbook in schema sml-workbook_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="workbook" type="CT_Workbook">
    <xsd:annotation>
        <xsd:documentation>Workbook</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fileVersion nsM:fileVersion 0 1
fileSharing nsM:fileSharing 0 1
workbookPr nsM:workbookPr 0 1
workbookProtection nsM:workbookProtection 0 1
bookViews nsM:bookViews 0 1
sheets nsM:sheets 1 1
functionGroups nsM:functionGroups 0 1
externalReferences nsM:externalReferences 0 1
definedNames nsM:definedNames 0 1
calcPr nsM:calcPr 0 1
oleSize nsM:oleSize 0 1
customWorkbookViews nsM:customWorkbookViews 0 1
pivotCaches nsM:pivotCaches 0 1
smartTagPr nsM:smartTagPr 0 1
smartTagTypes nsM:smartTagTypes 0 1
webPublishing nsM:webPublishing 0 1
fileRecoveryPr nsM:fileRecoveryPr 0 unbounded
webPublishObjects nsM:webPublishObjects 0 1
extLst nsM:extLst 0 1
Collapse Derivation Tree:
