Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: AmortizationTransaction
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_Loans.xsd
Abstract
Documentation:
The OFX element "AMRTSTMTTRN" is of type "AmortizationTransaction"

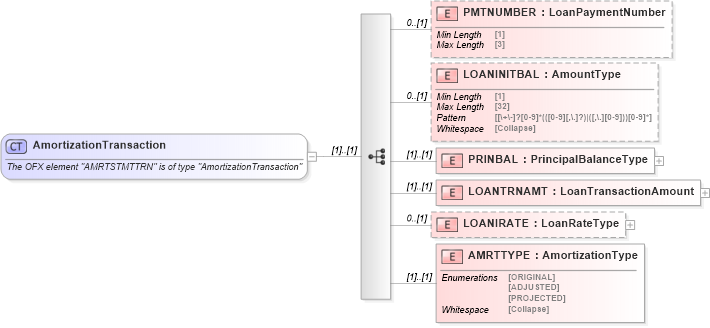

Collapse XSD Schema Diagram:
Drilldown into AMRTTYPE in schema ofx_loans_xsd Drilldown into LOANIRATE in schema ofx_loans_xsd Drilldown into LOANTRNAMT in schema ofx_loans_xsd Drilldown into PRINBAL in schema ofx_loans_xsd Drilldown into LOANINITBAL in schema ofx_loans_xsd Drilldown into PMTNUMBER in schema ofx_loans_xsdXSD Diagram of AmortizationTransaction in schema ofx_loans_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="AmortizationTransaction">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "AMRTSTMTTRN" is of type "AmortizationTransaction"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="PMTNUMBER" type="ofx:LoanPaymentNumber" minOccurs="0" />
        <xsd:element name="LOANINITBAL" type="ofx:AmountType" minOccurs="0" />
        <xsd:element name="PRINBAL" type="ofx:PrincipalBalanceType" />
        <xsd:element name="LOANTRNAMT" type="ofx:LoanTransactionAmount" />
        <xsd:element name="LOANIRATE" type="ofx:LoanRateType" minOccurs="0" />
        <xsd:element name="AMRTTYPE" type="ofx:AmortizationType" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PMTNUMBER ofx:PMTNUMBER 0 (1)
LOANINITBAL ofx:LOANINITBAL 0 (1)
PRINBAL ofx:PRINBAL (1) (1)
LOANTRNAMT ofx:LOANTRNAMT (1) (1)
LOANIRATE ofx:LOANIRATE 0 (1)
AMRTTYPE ofx:AMRTTYPE (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:AMRTSTMTTRN
