Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: BankMailResponse
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractMailResponse
Containing Schema: OFX_Banking_Messages.xsd
Abstract
Documentation:
The OFX element "BANKMAILRS" is of type "BankMailResponse"

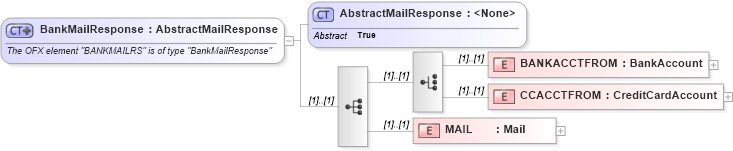

Collapse XSD Schema Diagram:
Drilldown into MAIL in schema ofx_banking_messages_xsd Drilldown into CCACCTFROM in schema ofx_banking_messages_xsd Drilldown into BANKACCTFROM in schema ofx_banking_messages_xsd Drilldown into AbstractMailResponse in schema ofx_banking_messages_xsdXSD Diagram of BankMailResponse in schema ofx_banking_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="BankMailResponse">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "BANKMAILRS" is of type "BankMailResponse"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractMailResponse">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:element name="BANKACCTFROM" type="ofx:BankAccount" />
                    <xsd:element name="CCACCTFROM" type="ofx:CreditCardAccount" />
                </xsd:choice>
                <xsd:element name="MAIL" type="ofx:Mail" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BANKACCTFROM ofx:BANKACCTFROM (1) (1)
CCACCTFROM ofx:CCACCTFROM (1) (1)
MAIL ofx:MAIL (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:BANKMAILRS
