Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: BANKMSGSRSV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:BankResponseMessageSetV1
Containing Schema: OFX2_Protocol.xsd
MinOccurs 0
MaxOccurs 1
Abstract

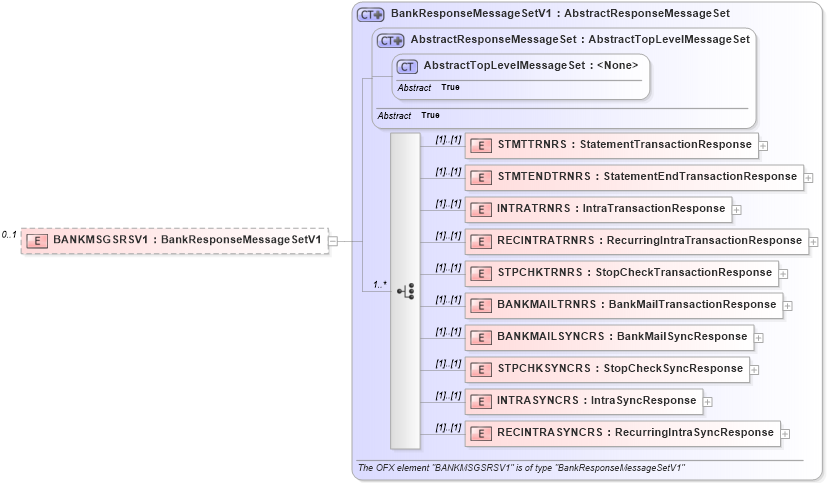

Collapse XSD Schema Diagram:
Drilldown into RECINTRASYNCRS in schema ofx2_protocol_xsd Drilldown into INTRASYNCRS in schema ofx2_protocol_xsd Drilldown into STPCHKSYNCRS in schema ofx2_protocol_xsd Drilldown into BANKMAILSYNCRS in schema ofx2_protocol_xsd Drilldown into BANKMAILTRNRS in schema ofx2_protocol_xsd Drilldown into STPCHKTRNRS in schema ofx2_protocol_xsd Drilldown into RECINTRATRNRS in schema ofx2_protocol_xsd Drilldown into INTRATRNRS in schema ofx2_protocol_xsd Drilldown into STMTENDTRNRS in schema ofx2_protocol_xsd Drilldown into STMTTRNRS in schema ofx2_protocol_xsd Drilldown into AbstractTopLevelMessageSet in schema ofx2_protocol_xsd Drilldown into AbstractResponseMessageSet in schema ofx2_protocol_xsd Drilldown into BankResponseMessageSetV1 in schema ofx2_protocol_xsdXSD Diagram of BANKMSGSRSV1 in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="BANKMSGSRSV1" type="ofx:BankResponseMessageSetV1" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
STMTTRNRS ofx:STMTTRNRS (1) (1)
STMTENDTRNRS ofx:STMTENDTRNRS (1) (1)
INTRATRNRS ofx:INTRATRNRS (1) (1)
RECINTRATRNRS ofx:RECINTRATRNRS (1) (1)
STPCHKTRNRS ofx:STPCHKTRNRS (1) (1)
BANKMAILTRNRS ofx:BANKMAILTRNRS (1) (1)
BANKMAILSYNCRS ofx:BANKMAILSYNCRS (1) (1)
STPCHKSYNCRS ofx:STPCHKSYNCRS (1) (1)
INTRASYNCRS ofx:INTRASYNCRS (1) (1)
RECINTRASYNCRS ofx:RECINTRASYNCRS (1) (1)
Collapse Derivation Tree:
