Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: BankTransactionList
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_Common.xsd
Abstract
Documentation:
The OFX element "BANKTRANLIST" is of type "BankTransactionList"
Collapse XSD Schema Diagram:

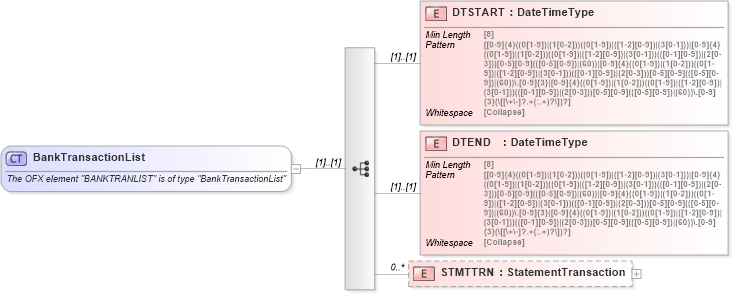

Drilldown into STMTTRN in schema ofx_common_xsd Drilldown into DTEND in schema ofx_common_xsd Drilldown into DTSTART in schema ofx_common_xsdXSD Diagram of BankTransactionList in schema ofx_common_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="BankTransactionList">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "BANKTRANLIST" is of type "BankTransactionList"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="DTSTART" type="ofx:DateTimeType" />
        <xsd:element name="DTEND" type="ofx:DateTimeType" />
        <xsd:element name="STMTTRN" type="ofx:StatementTransaction" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DTSTART ofx:DTSTART (1) (1)
DTEND ofx:DTEND (1) (1)
STMTTRN ofx:STMTTRN 0 unbounded
Collapse Derivation Tree:
Collapse References:
ofx:BANKTRANLIST, ofx:BANKTRANLIST
