Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: BILLPMTSTATUS
Namespace: http://ofx.net/types/2003/04
Type: ofx:BillPaymentstatus
Containing Schema: OFX_BillerDelivery_Messages.xsd
MinOccurs 0
MaxOccurs 1
Abstract

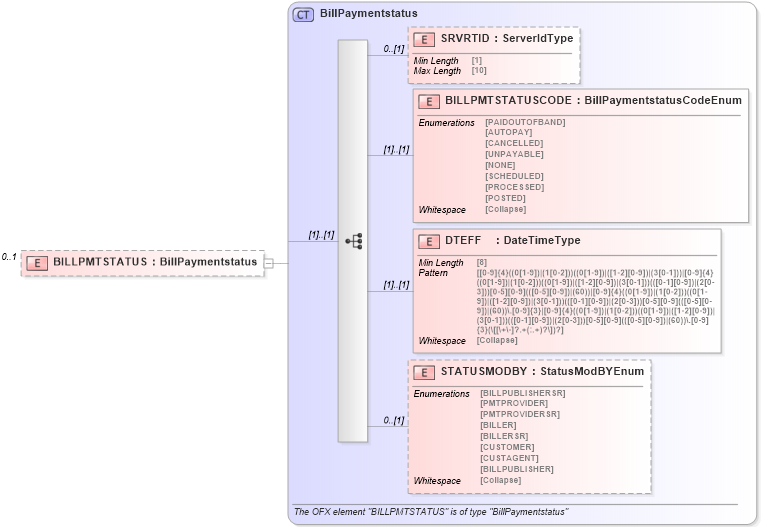

Collapse XSD Schema Diagram:
Drilldown into STATUSMODBY in schema ofx_billerdelivery_xsd Drilldown into DTEFF in schema ofx_billerdelivery_xsd Drilldown into BILLPMTSTATUSCODE in schema ofx_billerdelivery_xsd Drilldown into SRVRTID in schema ofx_billerdelivery_xsd Drilldown into BillPaymentstatus in schema ofx_billerdelivery_xsdXSD Diagram of BILLPMTSTATUS in schema ofx_billerdelivery_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="BILLPMTSTATUS" type="ofx:BillPaymentstatus" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SRVRTID ofx:SRVRTID 0 (1)
BILLPMTSTATUSCODE ofx:BILLPMTSTATUSCODE (1) (1)
DTEFF ofx:DTEFF (1) (1)
STATUSMODBY ofx:STATUSMODBY 0 (1)
Collapse Derivation Tree:
