Definition Type: Element
Name: CHALLENGETRNRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:ChallengeTransactionResponse
Containing Schema: OFX2_Protocol.xsd
MinOccurs 0
MaxOccurs 1
Abstract

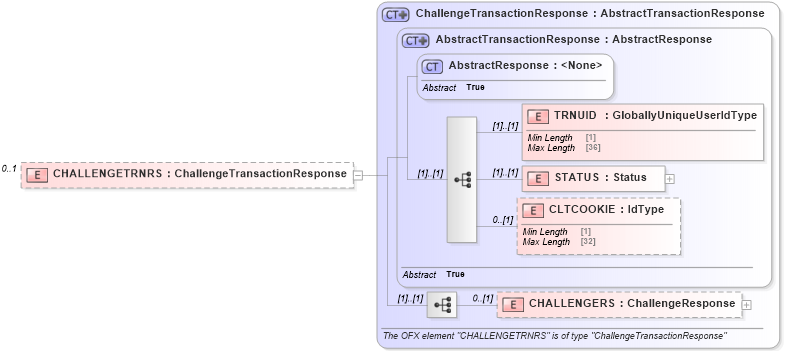

Collapse XSD Schema Diagram:
Drilldown into CHALLENGERS in schema ofx_signon_message_wrappers_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into STATUS in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractTransactionResponse in schema ofx_common_xsd Drilldown into ChallengeTransactionResponse in schema ofx_signon_message_wrappers_xsdXSD Diagram of CHALLENGETRNRS in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="CHALLENGETRNRS" type="ofx:ChallengeTransactionResponse" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
STATUS ofx:STATUS (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
CHALLENGERS ofx:CHALLENGERS 0 (1)
Collapse Derivation Tree:
