Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: ChangeUserInfoResponse
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_Signup_Messages.xsd
Abstract
Documentation:
The OFX element "CHGUSERINFORS" is of type "ChangeUserInfoResponse"

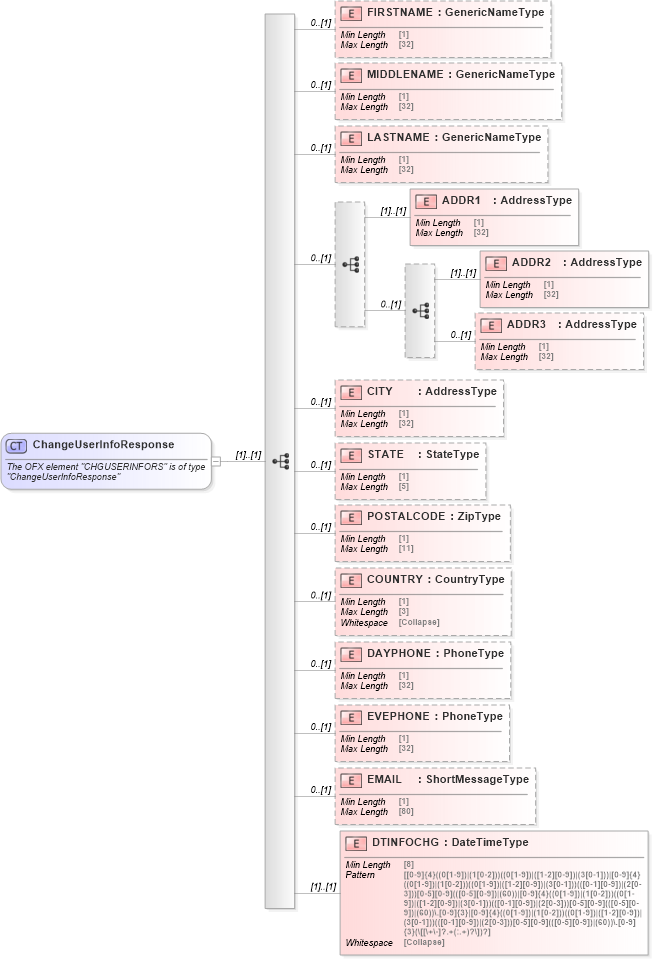

Collapse XSD Schema Diagram:
Drilldown into DTINFOCHG in schema ofx_signup_messages_xsd Drilldown into EMAIL in schema ofx_signup_messages_xsd Drilldown into EVEPHONE in schema ofx_signup_messages_xsd Drilldown into DAYPHONE in schema ofx_signup_messages_xsd Drilldown into COUNTRY in schema ofx_signup_messages_xsd Drilldown into POSTALCODE in schema ofx_signup_messages_xsd Drilldown into STATE in schema ofx_signup_messages_xsd Drilldown into CITY in schema ofx_signup_messages_xsd Drilldown into ADDR3 in schema ofx_signup_messages_xsd Drilldown into ADDR2 in schema ofx_signup_messages_xsd Drilldown into ADDR1 in schema ofx_signup_messages_xsd Drilldown into LASTNAME in schema ofx_signup_messages_xsd Drilldown into MIDDLENAME in schema ofx_signup_messages_xsd Drilldown into FIRSTNAME in schema ofx_signup_messages_xsdXSD Diagram of ChangeUserInfoResponse in schema ofx_signup_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="ChangeUserInfoResponse">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "CHGUSERINFORS" is of type "ChangeUserInfoResponse"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="FIRSTNAME" type="ofx:GenericNameType" minOccurs="0" />
        <xsd:element name="MIDDLENAME" type="ofx:GenericNameType" minOccurs="0" />
        <xsd:element name="LASTNAME" type="ofx:GenericNameType" minOccurs="0" />
        <xsd:sequence minOccurs="0">
            <xsd:element name="ADDR1" type="ofx:AddressType" />
            <xsd:sequence minOccurs="0">
                <xsd:element name="ADDR2" type="ofx:AddressType" />
                <xsd:element name="ADDR3" type="ofx:AddressType" minOccurs="0" />
            </xsd:sequence>
        </xsd:sequence>
        <xsd:element name="CITY" type="ofx:AddressType" minOccurs="0" />
        <xsd:element name="STATE" type="ofx:StateType" minOccurs="0" />
        <xsd:element name="POSTALCODE" type="ofx:ZipType" minOccurs="0" />
        <xsd:element name="COUNTRY" type="ofx:CountryType" minOccurs="0" />
        <xsd:element name="DAYPHONE" type="ofx:PhoneType" minOccurs="0" />
        <xsd:element name="EVEPHONE" type="ofx:PhoneType" minOccurs="0" />
        <xsd:element name="EMAIL" type="ofx:ShortMessageType" minOccurs="0" />
        <xsd:element name="DTINFOCHG" type="ofx:DateTimeType" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FIRSTNAME ofx:FIRSTNAME 0 (1)
MIDDLENAME ofx:MIDDLENAME 0 (1)
LASTNAME ofx:LASTNAME 0 (1)
ADDR1 ofx:ADDR1 (1) (1)
ADDR2 ofx:ADDR2 (1) (1)
ADDR3 ofx:ADDR3 0 (1)
CITY ofx:CITY 0 (1)
STATE ofx:STATE 0 (1)
POSTALCODE ofx:POSTALCODE 0 (1)
COUNTRY ofx:COUNTRY 0 (1)
DAYPHONE ofx:DAYPHONE 0 (1)
EVEPHONE ofx:EVEPHONE 0 (1)
EMAIL ofx:EMAIL 0 (1)
DTINFOCHG ofx:DTINFOCHG (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:CHGUSERINFORS
