Definition Type: ComplexType
Name: CreditcardResponseMessageSetV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractResponseMessageSet
Containing Schema: OFX2_Protocol.xsd
Abstract
Documentation:
The OFX element "CREDITCARDMSGSRSV1" is of type "CreditcardResponseMessageSetV1"

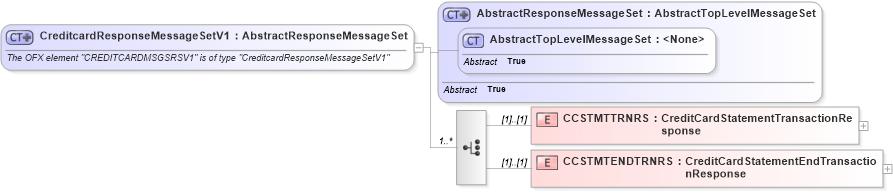

Collapse XSD Schema Diagram:
Drilldown into CCSTMTENDTRNRS in schema ofx2_protocol_xsd Drilldown into CCSTMTTRNRS in schema ofx2_protocol_xsd Drilldown into AbstractTopLevelMessageSet in schema ofx2_protocol_xsd Drilldown into AbstractResponseMessageSet in schema ofx2_protocol_xsdXSD Diagram of CreditcardResponseMessageSetV1 in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="CreditcardResponseMessageSetV1">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "CREDITCARDMSGSRSV1" is of type "CreditcardResponseMessageSetV1"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractResponseMessageSet">
            <xsd:choice minOccurs="1" maxOccurs="unbounded">
                <xsd:element name="CCSTMTTRNRS" type="ofx:CreditCardStatementTransactionResponse" />
                <xsd:element name="CCSTMTENDTRNRS" type="ofx:CreditCardStatementEndTransactionResponse" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CCSTMTTRNRS ofx:CCSTMTTRNRS (1) (1)
CCSTMTENDTRNRS ofx:CCSTMTENDTRNRS (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:CREDITCARDMSGSRSV1
