Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: CreditCardStatementEndRequest
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_CreditCard_Messages.xsd
Abstract
Documentation:
The OFX element "CCSTMTENDRQ" is of type "CreditCardStatementEndRequest"
Collapse XSD Schema Diagram:

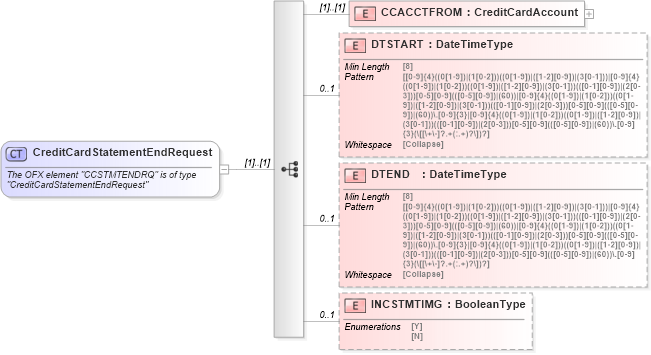

Drilldown into INCSTMTIMG in schema ofx_creditcard_messages_xsd Drilldown into DTEND in schema ofx_creditcard_messages_xsd Drilldown into DTSTART in schema ofx_creditcard_messages_xsd Drilldown into CCACCTFROM in schema ofx_creditcard_messages_xsdXSD Diagram of CreditCardStatementEndRequest in schema ofx_creditcard_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="CreditCardStatementEndRequest">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "CCSTMTENDRQ" is of type "CreditCardStatementEndRequest"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="CCACCTFROM" type="ofx:CreditCardAccount" />
        <xsd:element name="DTSTART" type="ofx:DateTimeType" minOccurs="0" maxOccurs="1" />
        <xsd:element name="DTEND" type="ofx:DateTimeType" minOccurs="0" maxOccurs="1" />
        <xsd:element name="INCSTMTIMG" type="ofx:BooleanType" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CCACCTFROM ofx:CCACCTFROM (1) (1)
DTSTART ofx:DTSTART 0 1
DTEND ofx:DTEND 0 1
INCSTMTIMG ofx:INCSTMTIMG 0 1
Collapse Derivation Tree:
Collapse References:
ofx:CCSTMTENDRQ
