Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: FinancialInstitution
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_Signon.xsd
Abstract
Documentation:
The OFX element "FI" is of type "FinancialInstitution"

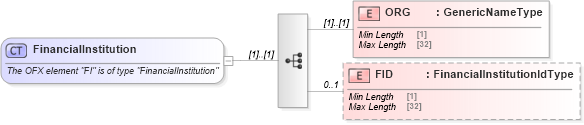

Collapse XSD Schema Diagram:
Drilldown into FID in schema ofx_signon_xsd Drilldown into ORG in schema ofx_signon_xsdXSD Diagram of FinancialInstitution in schema ofx_signon_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="FinancialInstitution">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "FI" is of type "FinancialInstitution"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ORG" type="ofx:GenericNameType" />
        <xsd:element name="FID" type="ofx:FinancialInstitutionIdType" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORG ofx:ORG (1) (1)
FID ofx:FID 0 1
Collapse Derivation Tree:
Collapse References:
ofx:FI, ofx:FI
