Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: IMAGEDATA
Namespace: http://ofx.net/types/2003/04
Type: ofx:ImageData
Containing Schema: OFX_Common.xsd
MinOccurs 0
MaxOccurs 2
Abstract

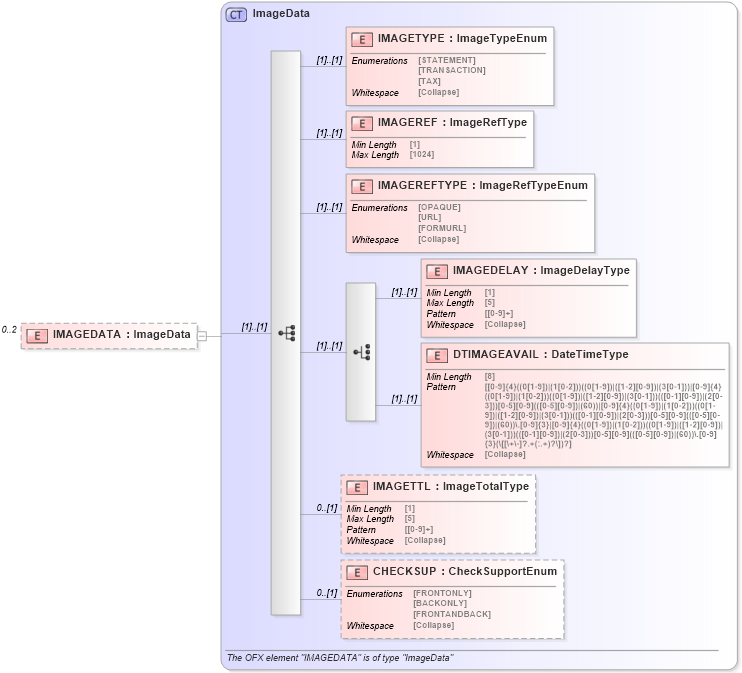

Collapse XSD Schema Diagram:
Drilldown into CHECKSUP in schema ofx_common_xsd Drilldown into IMAGETTL in schema ofx_common_xsd Drilldown into DTIMAGEAVAIL in schema ofx_common_xsd Drilldown into IMAGEDELAY in schema ofx_common_xsd Drilldown into IMAGEREFTYPE in schema ofx_common_xsd Drilldown into IMAGEREF in schema ofx_common_xsd Drilldown into IMAGETYPE in schema ofx_common_xsd Drilldown into ImageData in schema ofx_common_xsdXSD Diagram of IMAGEDATA in schema ofx_common_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="IMAGEDATA" type="ofx:ImageData" minOccurs="0" maxOccurs="2" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IMAGETYPE ofx:IMAGETYPE (1) (1)
IMAGEREF ofx:IMAGEREF (1) (1)
IMAGEREFTYPE ofx:IMAGEREFTYPE (1) (1)
IMAGEDELAY ofx:IMAGEDELAY (1) (1)
DTIMAGEAVAIL ofx:DTIMAGEAVAIL (1) (1)
IMAGETTL ofx:IMAGETTL 0 (1)
CHECKSUP ofx:CHECKSUP 0 (1)
Collapse Derivation Tree:
