Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: INTERXFERMSGSRQV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:InterTransferRequestMessageSetV1
Containing Schema: OFX2_Protocol.xsd
MinOccurs 0
MaxOccurs 1
Abstract

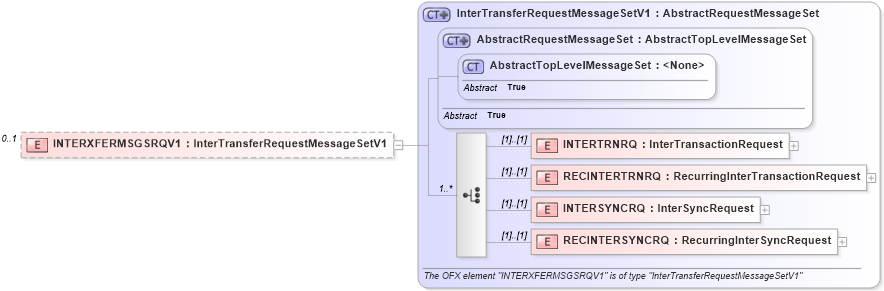

Collapse XSD Schema Diagram:
Drilldown into RECINTERSYNCRQ in schema ofx2_protocol_xsd Drilldown into INTERSYNCRQ in schema ofx2_protocol_xsd Drilldown into RECINTERTRNRQ in schema ofx2_protocol_xsd Drilldown into INTERTRNRQ in schema ofx2_protocol_xsd Drilldown into AbstractTopLevelMessageSet in schema ofx2_protocol_xsd Drilldown into AbstractRequestMessageSet in schema ofx2_protocol_xsd Drilldown into InterTransferRequestMessageSetV1 in schema ofx2_protocol_xsdXSD Diagram of INTERXFERMSGSRQV1 in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="INTERXFERMSGSRQV1" type="ofx:InterTransferRequestMessageSetV1" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
INTERTRNRQ ofx:INTERTRNRQ (1) (1)
RECINTERTRNRQ ofx:RECINTERTRNRQ (1) (1)
INTERSYNCRQ ofx:INTERSYNCRQ (1) (1)
RECINTERSYNCRQ ofx:RECINTERSYNCRQ (1) (1)
Collapse Derivation Tree:
Documentation for OFX - Open Financial Exchange

Generated using Liquid Studio - Developer Bundle 21.0.0.0
