Definition Type: Element
Name: INTRATRNRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:IntraTransactionResponse
Containing Schema: OFX_Banking_Message_Wrappers.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

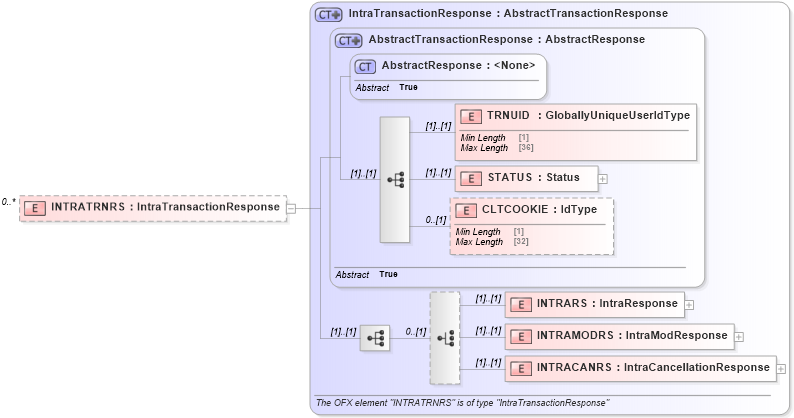

Collapse XSD Schema Diagram:
Drilldown into INTRACANRS in schema ofx_banking_message_wrappers_xsd Drilldown into INTRAMODRS in schema ofx_banking_message_wrappers_xsd Drilldown into INTRARS in schema ofx_banking_message_wrappers_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into STATUS in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractTransactionResponse in schema ofx_common_xsd Drilldown into IntraTransactionResponse in schema ofx_banking_message_wrappers_xsdXSD Diagram of INTRATRNRS in schema ofx_banking_message_wrappers_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="INTRATRNRS" type="ofx:IntraTransactionResponse" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
STATUS ofx:STATUS (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
INTRARS ofx:INTRARS (1) (1)
INTRAMODRS ofx:INTRAMODRS (1) (1)
INTRACANRS ofx:INTRACANRS (1) (1)
Collapse Derivation Tree:
