Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: OPTINFO
Namespace: http://ofx.net/types/2003/04
Type: ofx:OptionInfo
Containing Schema: OFX_SecuritiesList.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

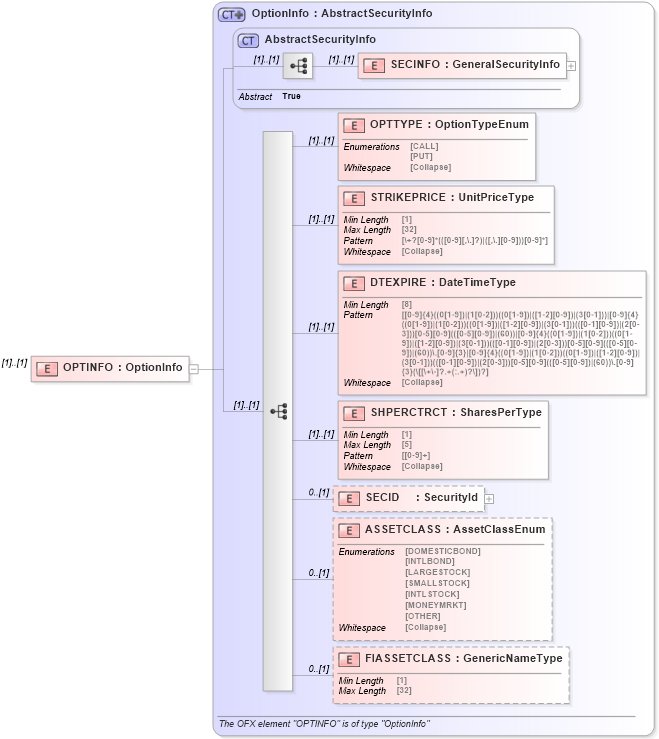

Collapse XSD Schema Diagram:
Drilldown into FIASSETCLASS in schema ofx_securitieslist_xsd Drilldown into ASSETCLASS in schema ofx_securitieslist_xsd Drilldown into SECID in schema ofx_securitieslist_xsd Drilldown into SHPERCTRCT in schema ofx_securitieslist_xsd Drilldown into DTEXPIRE in schema ofx_securitieslist_xsd Drilldown into STRIKEPRICE in schema ofx_securitieslist_xsd Drilldown into OPTTYPE in schema ofx_securitieslist_xsd Drilldown into SECINFO in schema ofx_securitieslist_xsd Drilldown into AbstractSecurityInfo in schema ofx_securitieslist_xsd Drilldown into OptionInfo in schema ofx_securitieslist_xsdXSD Diagram of OPTINFO in schema ofx_securitieslist_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="OPTINFO" type="ofx:OptionInfo" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SECINFO ofx:SECINFO (1) (1)
OPTTYPE ofx:OPTTYPE (1) (1)
STRIKEPRICE ofx:STRIKEPRICE (1) (1)
DTEXPIRE ofx:DTEXPIRE (1) (1)
SHPERCTRCT ofx:SHPERCTRCT (1) (1)
SECID ofx:SECID 0 (1)
ASSETCLASS ofx:ASSETCLASS 0 (1)
FIASSETCLASS ofx:FIASSETCLASS 0 (1)
Collapse Derivation Tree:
