Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: Payee
Namespace: http://ofx.net/types/2003/04
Containing Schema: OFX_Common.xsd
Abstract
Documentation:
The OFX element "PAYEE" is of type "Payee"

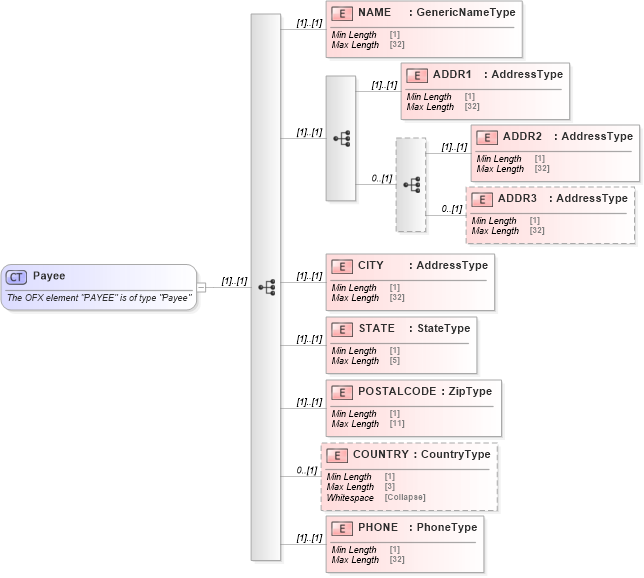

Collapse XSD Schema Diagram:
Drilldown into PHONE in schema ofx_common_xsd Drilldown into COUNTRY in schema ofx_common_xsd Drilldown into POSTALCODE in schema ofx_common_xsd Drilldown into STATE in schema ofx_common_xsd Drilldown into CITY in schema ofx_common_xsd Drilldown into ADDR3 in schema ofx_common_xsd Drilldown into ADDR2 in schema ofx_common_xsd Drilldown into ADDR1 in schema ofx_common_xsd Drilldown into NAME in schema ofx_common_xsdXSD Diagram of Payee in schema ofx_common_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="Payee">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "PAYEE" is of type "Payee"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="NAME" type="ofx:GenericNameType" />
        <xsd:sequence>
            <xsd:element name="ADDR1" type="ofx:AddressType" />
            <xsd:sequence minOccurs="0">
                <xsd:element name="ADDR2" type="ofx:AddressType" />
                <xsd:element name="ADDR3" type="ofx:AddressType" minOccurs="0" />
            </xsd:sequence>
        </xsd:sequence>
        <xsd:element name="CITY" type="ofx:AddressType" />
        <xsd:element name="STATE" type="ofx:StateType" />
        <xsd:element name="POSTALCODE" type="ofx:ZipType" />
        <xsd:element name="COUNTRY" type="ofx:CountryType" minOccurs="0" />
        <xsd:element name="PHONE" type="ofx:PhoneType" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NAME ofx:NAME (1) (1)
ADDR1 ofx:ADDR1 (1) (1)
ADDR2 ofx:ADDR2 (1) (1)
ADDR3 ofx:ADDR3 0 (1)
CITY ofx:CITY (1) (1)
STATE ofx:STATE (1) (1)
POSTALCODE ofx:POSTALCODE (1) (1)
COUNTRY ofx:COUNTRY 0 (1)
PHONE ofx:PHONE (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:PAYEE, ofx:PAYEE, ofx:PAYEE, ofx:PAYEE, ofx:PAYEE, ofx:PAYEE
