Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: PMTMAILSYNCRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:PaymentMailSyncResponse
Containing Schema: OFX3_Protocol_dotNET.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

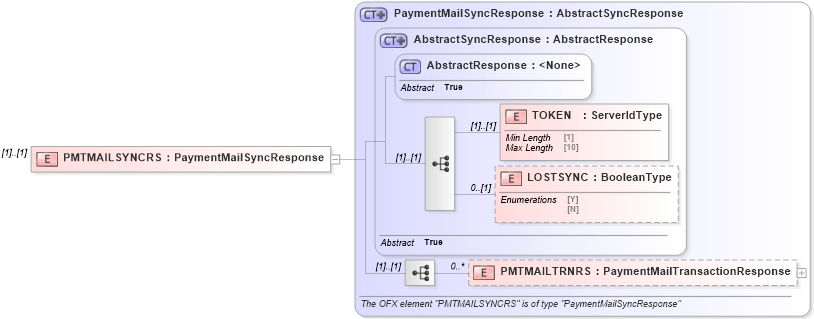

Collapse XSD Schema Diagram:
Drilldown into PMTMAILTRNRS in schema ofx_billpay_message_wrappers_xsd Drilldown into LOSTSYNC in schema ofx_common_xsd Drilldown into TOKEN in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractSyncResponse in schema ofx_common_xsd Drilldown into PaymentMailSyncResponse in schema ofx_billpay_message_wrappers_xsdXSD Diagram of PMTMAILSYNCRS in schema ofx3_protocol_dotnet_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="PMTMAILSYNCRS" type="ofx:PaymentMailSyncResponse" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TOKEN ofx:TOKEN (1) (1)
LOSTSYNC ofx:LOSTSYNC 0 (1)
PMTMAILTRNRS ofx:PMTMAILTRNRS 0 unbounded
Collapse Derivation Tree:
