Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: PMTSYNCRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:PaymentSyncRequest
Containing Schema: OFX2_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

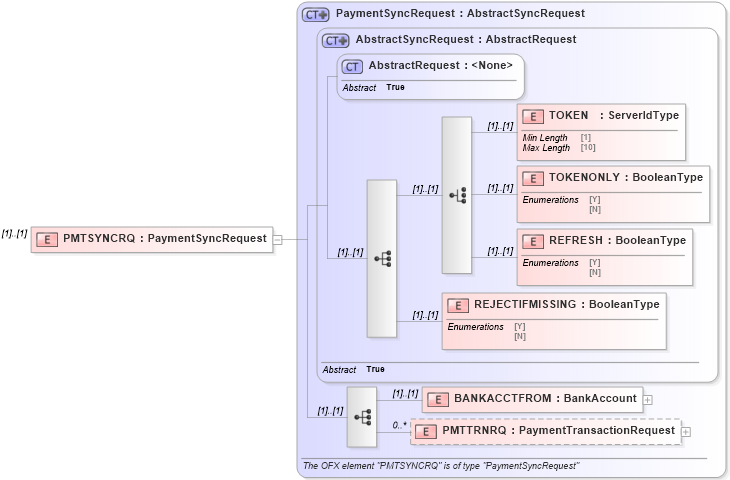

Collapse XSD Schema Diagram:
Drilldown into PMTTRNRQ in schema ofx_billpay_message_wrappers_xsd Drilldown into BANKACCTFROM in schema ofx_billpay_message_wrappers_xsd Drilldown into REJECTIFMISSING in schema ofx_common_xsd Drilldown into REFRESH in schema ofx_common_xsd Drilldown into TOKENONLY in schema ofx_common_xsd Drilldown into TOKEN in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractSyncRequest in schema ofx_common_xsd Drilldown into PaymentSyncRequest in schema ofx_billpay_message_wrappers_xsdXSD Diagram of PMTSYNCRQ in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="PMTSYNCRQ" type="ofx:PaymentSyncRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TOKEN ofx:TOKEN (1) (1)
TOKENONLY ofx:TOKENONLY (1) (1)
REFRESH ofx:REFRESH (1) (1)
REJECTIFMISSING ofx:REJECTIFMISSING (1) (1)
BANKACCTFROM ofx:BANKACCTFROM (1) (1)
PMTTRNRQ ofx:PMTTRNRQ 0 unbounded
Collapse Derivation Tree:
