Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: PMTTRNRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:PaymentTransactionResponse
Containing Schema: OFX2_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

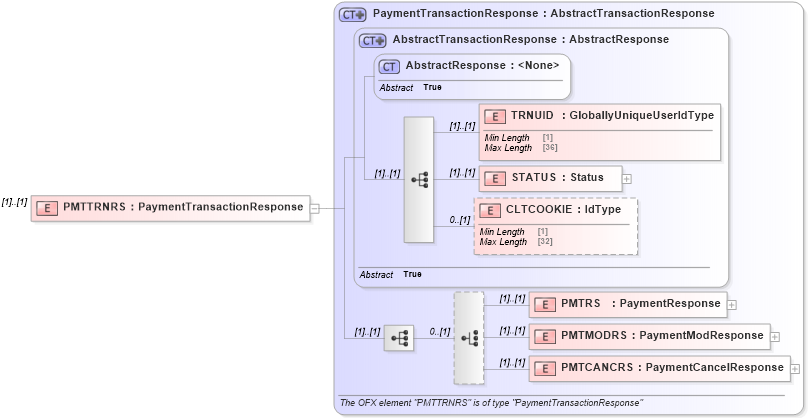

Collapse XSD Schema Diagram:
Drilldown into PMTCANCRS in schema ofx_billpay_message_wrappers_xsd Drilldown into PMTMODRS in schema ofx_billpay_message_wrappers_xsd Drilldown into PMTRS in schema ofx_billpay_message_wrappers_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into STATUS in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractTransactionResponse in schema ofx_common_xsd Drilldown into PaymentTransactionResponse in schema ofx_billpay_message_wrappers_xsdXSD Diagram of PMTTRNRS in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="PMTTRNRS" type="ofx:PaymentTransactionResponse" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
STATUS ofx:STATUS (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
PMTRS ofx:PMTRS (1) (1)
PMTMODRS ofx:PMTMODRS (1) (1)
PMTCANCRS ofx:PMTCANCRS (1) (1)
Collapse Derivation Tree:
