Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: RECINTERTRNRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:RecurringInterTransactionResponse
Containing Schema: OFX_InterTransfer_Message_Wrappers.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

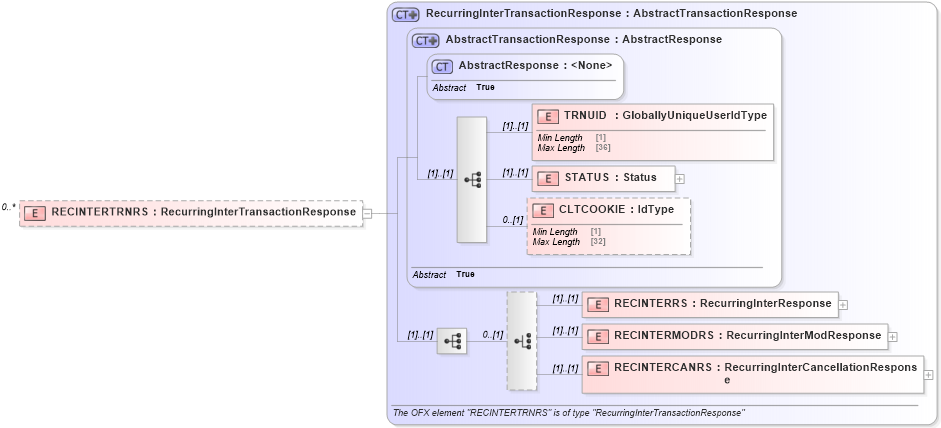

Collapse XSD Schema Diagram:
Drilldown into RECINTERCANRS in schema ofx_intertransfer_message_wrappers_xsd Drilldown into RECINTERMODRS in schema ofx_intertransfer_message_wrappers_xsd Drilldown into RECINTERRS in schema ofx_intertransfer_message_wrappers_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into STATUS in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractTransactionResponse in schema ofx_common_xsd Drilldown into RecurringInterTransactionResponse in schema ofx_intertransfer_message_wrappers_xsdXSD Diagram of RECINTERTRNRS in schema ofx_intertransfer_message_wrappers_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="RECINTERTRNRS" type="ofx:RecurringInterTransactionResponse" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
STATUS ofx:STATUS (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
RECINTERRS ofx:RECINTERRS (1) (1)
RECINTERMODRS ofx:RECINTERMODRS (1) (1)
RECINTERCANRS ofx:RECINTERCANRS (1) (1)
Collapse Derivation Tree:
