Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: RECINTRATRNRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:RecurringIntraTransactionResponse
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

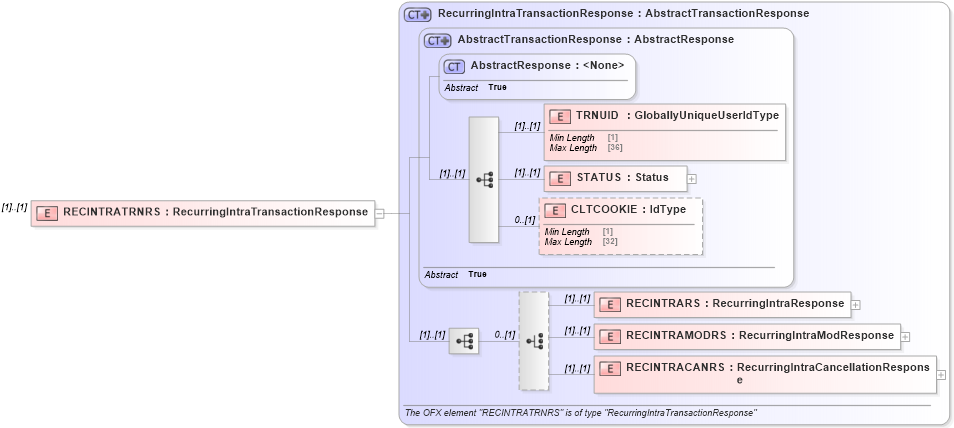

Collapse XSD Schema Diagram:
Drilldown into RECINTRACANRS in schema ofx_banking_message_wrappers_xsd Drilldown into RECINTRAMODRS in schema ofx_banking_message_wrappers_xsd Drilldown into RECINTRARS in schema ofx_banking_message_wrappers_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into STATUS in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractTransactionResponse in schema ofx_common_xsd Drilldown into RecurringIntraTransactionResponse in schema ofx_banking_message_wrappers_xsdXSD Diagram of RECINTRATRNRS in schema ofx3_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="RECINTRATRNRS" type="ofx:RecurringIntraTransactionResponse" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
STATUS ofx:STATUS (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
RECINTRARS ofx:RECINTRARS (1) (1)
RECINTRAMODRS ofx:RECINTRAMODRS (1) (1)
RECINTRACANRS ofx:RECINTRACANRS (1) (1)
Collapse Derivation Tree:
