Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: RecurringInterModRequest
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractRecurringInterRequest
Containing Schema: OFX_InterTransfer_Messages.xsd
Abstract
Documentation:
The OFX element "RECINTERMODRQ" is of type "RecurringInterModRequest"

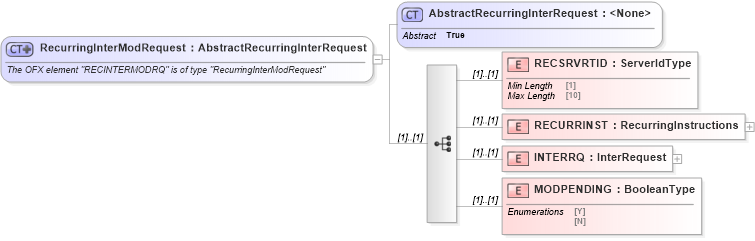

Collapse XSD Schema Diagram:
Drilldown into MODPENDING in schema ofx_intertransfer_messages_xsd Drilldown into INTERRQ in schema ofx_intertransfer_messages_xsd Drilldown into RECURRINST in schema ofx_intertransfer_messages_xsd Drilldown into RECSRVRTID in schema ofx_intertransfer_messages_xsd Drilldown into AbstractRecurringInterRequest in schema ofx_intertransfer_messages_xsdXSD Diagram of RecurringInterModRequest in schema ofx_intertransfer_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="RecurringInterModRequest">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "RECINTERMODRQ" is of type "RecurringInterModRequest"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractRecurringInterRequest">
            <xsd:sequence>
                <xsd:element name="RECSRVRTID" type="ofx:ServerIdType" />
                <xsd:element name="RECURRINST" type="ofx:RecurringInstructions" />
                <xsd:element name="INTERRQ" type="ofx:InterRequest" />
                <xsd:element name="MODPENDING" type="ofx:BooleanType" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RECSRVRTID ofx:RECSRVRTID (1) (1)
RECURRINST ofx:RECURRINST (1) (1)
INTERRQ ofx:INTERRQ (1) (1)
MODPENDING ofx:MODPENDING (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:RECINTERMODRQ
