Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: RecurringIntraResponse
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractRecurringIntraResponse
Containing Schema: OFX_Banking_Messages.xsd
Abstract
Documentation:
The OFX element "RECINTRARS" is of type "RecurringIntraResponse"

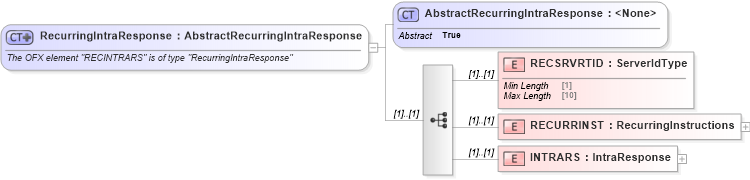

Collapse XSD Schema Diagram:
Drilldown into INTRARS in schema ofx_banking_messages_xsd Drilldown into RECURRINST in schema ofx_banking_messages_xsd Drilldown into RECSRVRTID in schema ofx_banking_messages_xsd Drilldown into AbstractRecurringIntraResponse in schema ofx_banking_messages_xsdXSD Diagram of RecurringIntraResponse in schema ofx_banking_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="RecurringIntraResponse">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "RECINTRARS" is of type "RecurringIntraResponse"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractRecurringIntraResponse">
            <xsd:sequence>
                <xsd:element name="RECSRVRTID" type="ofx:ServerIdType" />
                <xsd:element name="RECURRINST" type="ofx:RecurringInstructions" />
                <xsd:element name="INTRARS" type="ofx:IntraResponse" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RECSRVRTID ofx:RECSRVRTID (1) (1)
RECURRINST ofx:RECURRINST (1) (1)
INTRARS ofx:INTRARS (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:RECINTRARS
