Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: RecurringPaymentModResponse
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractRecurringPaymentResponse
Containing Schema: OFX_BillPay_Messages.xsd
Abstract
Documentation:
The OFX element "RECPMTMODRS" is of type "RecurringPaymentModResponse"

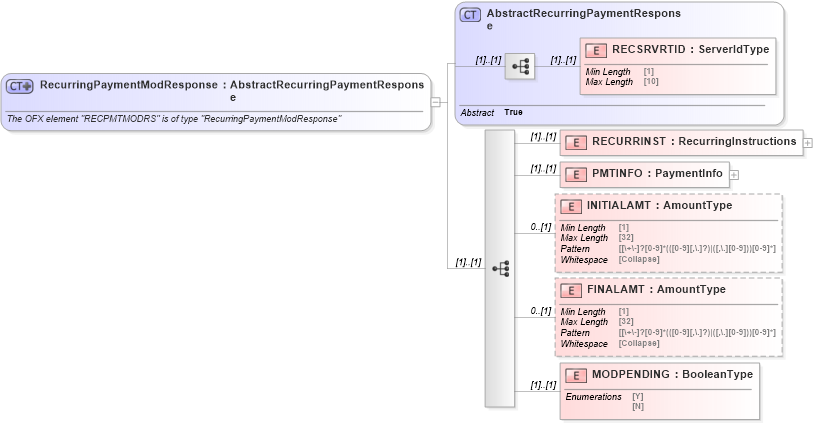

Collapse XSD Schema Diagram:
Drilldown into MODPENDING in schema ofx_billpay_messages_xsd Drilldown into FINALAMT in schema ofx_billpay_messages_xsd Drilldown into INITIALAMT in schema ofx_billpay_messages_xsd Drilldown into PMTINFO in schema ofx_billpay_messages_xsd Drilldown into RECURRINST in schema ofx_billpay_messages_xsd Drilldown into RECSRVRTID in schema ofx_billpay_messages_xsd Drilldown into AbstractRecurringPaymentResponse in schema ofx_billpay_messages_xsdXSD Diagram of RecurringPaymentModResponse in schema ofx_billpay_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="RecurringPaymentModResponse">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "RECPMTMODRS" is of type "RecurringPaymentModResponse"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractRecurringPaymentResponse">
            <xsd:sequence>
                <xsd:element name="RECURRINST" type="ofx:RecurringInstructions" />
                <xsd:element name="PMTINFO" type="ofx:PaymentInfo" />
                <xsd:element name="INITIALAMT" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="FINALAMT" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="MODPENDING" type="ofx:BooleanType" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RECSRVRTID ofx:RECSRVRTID (1) (1)
RECURRINST ofx:RECURRINST (1) (1)
PMTINFO ofx:PMTINFO (1) (1)
INITIALAMT ofx:INITIALAMT 0 (1)
FINALAMT ofx:FINALAMT 0 (1)
MODPENDING ofx:MODPENDING (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:RECPMTMODRS
