Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: SecurityListResponseMessageSetV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractResponseMessageSet
Containing Schema: OFX2_Protocol.xsd
Abstract
Documentation:
The OFX element "SECLISTMSGSRSV1" is of type "SecurityListResponseMessageSetV1"

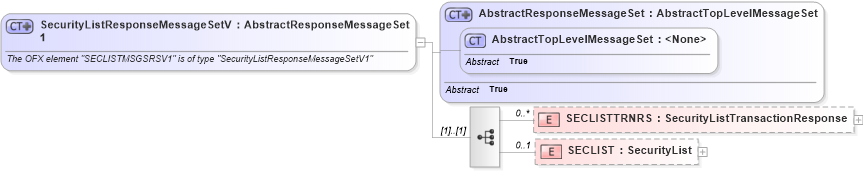

Collapse XSD Schema Diagram:
Drilldown into SECLIST in schema ofx2_protocol_xsd Drilldown into SECLISTTRNRS in schema ofx2_protocol_xsd Drilldown into AbstractTopLevelMessageSet in schema ofx2_protocol_xsd Drilldown into AbstractResponseMessageSet in schema ofx2_protocol_xsdXSD Diagram of SecurityListResponseMessageSetV1 in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="SecurityListResponseMessageSetV1">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "SECLISTMSGSRSV1" is of type "SecurityListResponseMessageSetV1"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractResponseMessageSet">
            <xsd:sequence>
                <xsd:element name="SECLISTTRNRS" type="ofx:SecurityListTransactionResponse" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="SECLIST" type="ofx:SecurityList" minOccurs="0" maxOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SECLISTTRNRS ofx:SECLISTTRNRS 0 unbounded
SECLIST ofx:SECLIST 0 1
Collapse Derivation Tree:
Collapse References:
ofx:SECLISTMSGSRSV1
