Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: SIGNONINFO
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonInfo
Containing Schema: OFX_Profile.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

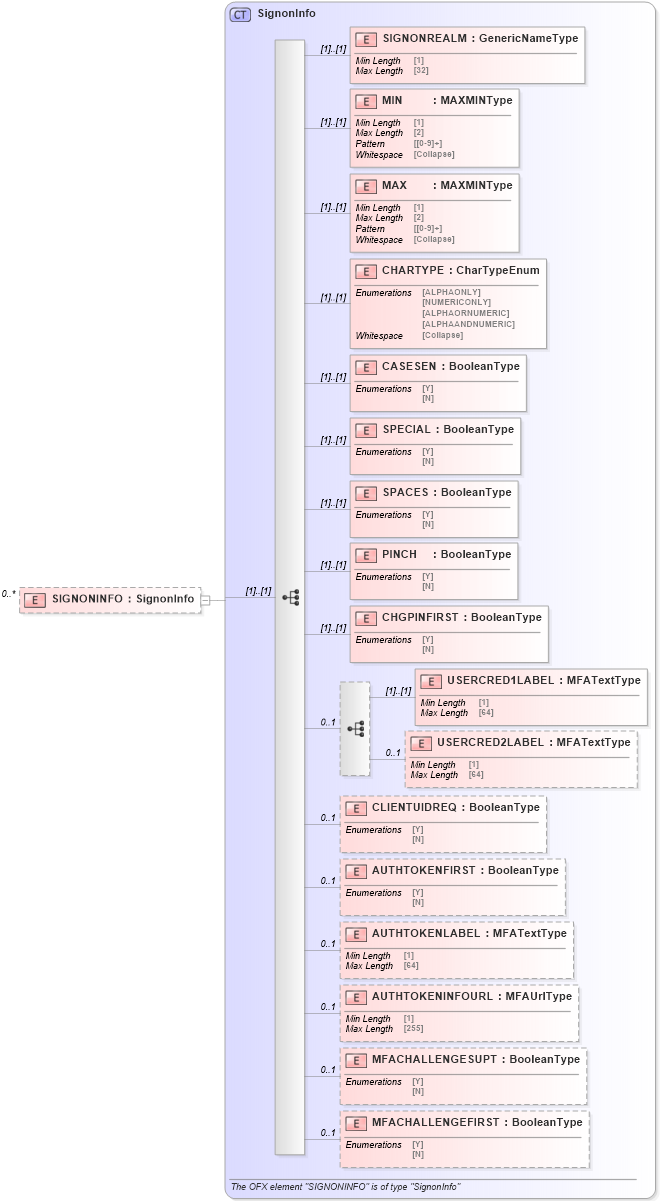

Collapse XSD Schema Diagram:
Drilldown into MFACHALLENGEFIRST in schema ofx_profile_xsd Drilldown into MFACHALLENGESUPT in schema ofx_profile_xsd Drilldown into AUTHTOKENINFOURL in schema ofx_profile_xsd Drilldown into AUTHTOKENLABEL in schema ofx_profile_xsd Drilldown into AUTHTOKENFIRST in schema ofx_profile_xsd Drilldown into CLIENTUIDREQ in schema ofx_profile_xsd Drilldown into USERCRED2LABEL in schema ofx_profile_xsd Drilldown into USERCRED1LABEL in schema ofx_profile_xsd Drilldown into CHGPINFIRST in schema ofx_profile_xsd Drilldown into PINCH in schema ofx_profile_xsd Drilldown into SPACES in schema ofx_profile_xsd Drilldown into SPECIAL in schema ofx_profile_xsd Drilldown into CASESEN in schema ofx_profile_xsd Drilldown into CHARTYPE in schema ofx_profile_xsd Drilldown into MAX in schema ofx_profile_xsd Drilldown into MIN in schema ofx_profile_xsd Drilldown into SIGNONREALM in schema ofx_profile_xsd Drilldown into SignonInfo in schema ofx_profile_xsdXSD Diagram of SIGNONINFO in schema ofx_profile_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="SIGNONINFO" type="ofx:SignonInfo" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SIGNONREALM ofx:SIGNONREALM (1) (1)
MIN ofx:MIN (1) (1)
MAX ofx:MAX (1) (1)
CHARTYPE ofx:CHARTYPE (1) (1)
CASESEN ofx:CASESEN (1) (1)
SPECIAL ofx:SPECIAL (1) (1)
SPACES ofx:SPACES (1) (1)
PINCH ofx:PINCH (1) (1)
CHGPINFIRST ofx:CHGPINFIRST (1) (1)
USERCRED1LABEL ofx:USERCRED1LABEL (1) (1)
USERCRED2LABEL ofx:USERCRED2LABEL 0 1
CLIENTUIDREQ ofx:CLIENTUIDREQ 0 1
AUTHTOKENFIRST ofx:AUTHTOKENFIRST 0 1
AUTHTOKENLABEL ofx:AUTHTOKENLABEL 0 1
AUTHTOKENINFOURL ofx:AUTHTOKENINFOURL 0 1
MFACHALLENGESUPT ofx:MFACHALLENGESUPT 0 1
MFACHALLENGEFIRST ofx:MFACHALLENGEFIRST 0 1
Collapse Derivation Tree:
