Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: SONRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonRequest
Containing Schema: OFX3_Protocol_dotNET.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

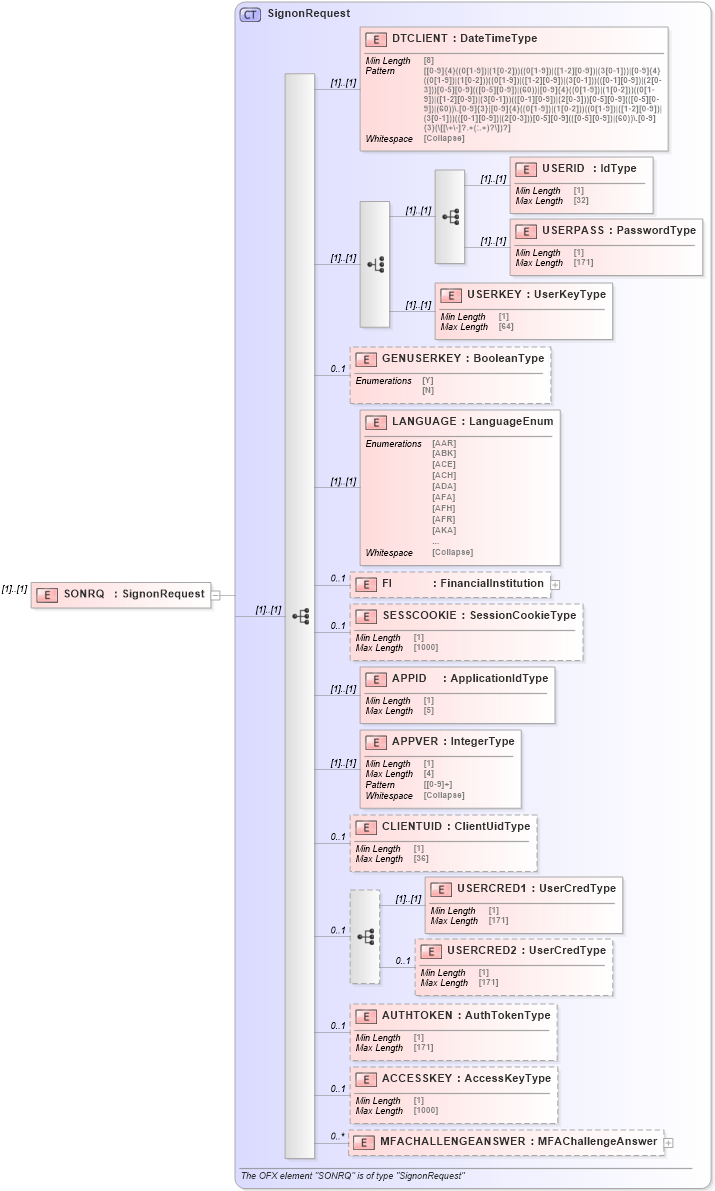

Collapse XSD Schema Diagram:
Drilldown into MFACHALLENGEANSWER in schema ofx_signon_messages_xsd Drilldown into ACCESSKEY in schema ofx_signon_messages_xsd Drilldown into AUTHTOKEN in schema ofx_signon_messages_xsd Drilldown into USERCRED2 in schema ofx_signon_messages_xsd Drilldown into USERCRED1 in schema ofx_signon_messages_xsd Drilldown into CLIENTUID in schema ofx_signon_messages_xsd Drilldown into APPVER in schema ofx_signon_messages_xsd Drilldown into APPID in schema ofx_signon_messages_xsd Drilldown into SESSCOOKIE in schema ofx_signon_messages_xsd Drilldown into FI in schema ofx_signon_messages_xsd Drilldown into LANGUAGE in schema ofx_signon_messages_xsd Drilldown into GENUSERKEY in schema ofx_signon_messages_xsd Drilldown into USERKEY in schema ofx_signon_messages_xsd Drilldown into USERPASS in schema ofx_signon_messages_xsd Drilldown into USERID in schema ofx_signon_messages_xsd Drilldown into DTCLIENT in schema ofx_signon_messages_xsd Drilldown into SignonRequest in schema ofx_signon_messages_xsdXSD Diagram of SONRQ in schema ofx3_protocol_dotnet_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="SONRQ" type="ofx:SignonRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DTCLIENT ofx:DTCLIENT (1) (1)
USERID ofx:USERID (1) (1)
USERPASS ofx:USERPASS (1) (1)
USERKEY ofx:USERKEY (1) (1)
GENUSERKEY ofx:GENUSERKEY 0 1
LANGUAGE ofx:LANGUAGE (1) (1)
FI ofx:FI 0 1
SESSCOOKIE ofx:SESSCOOKIE 0 1
APPID ofx:APPID (1) (1)
APPVER ofx:APPVER (1) (1)
CLIENTUID ofx:CLIENTUID 0 1
USERCRED1 ofx:USERCRED1 (1) (1)
USERCRED2 ofx:USERCRED2 0 1
AUTHTOKEN ofx:AUTHTOKEN 0 1
ACCESSKEY ofx:ACCESSKEY 0 1
MFACHALLENGEANSWER ofx:MFACHALLENGEANSWER 0 unbounded
Collapse Derivation Tree:
