Definition Type: Element
Name: SONRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonResponse
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

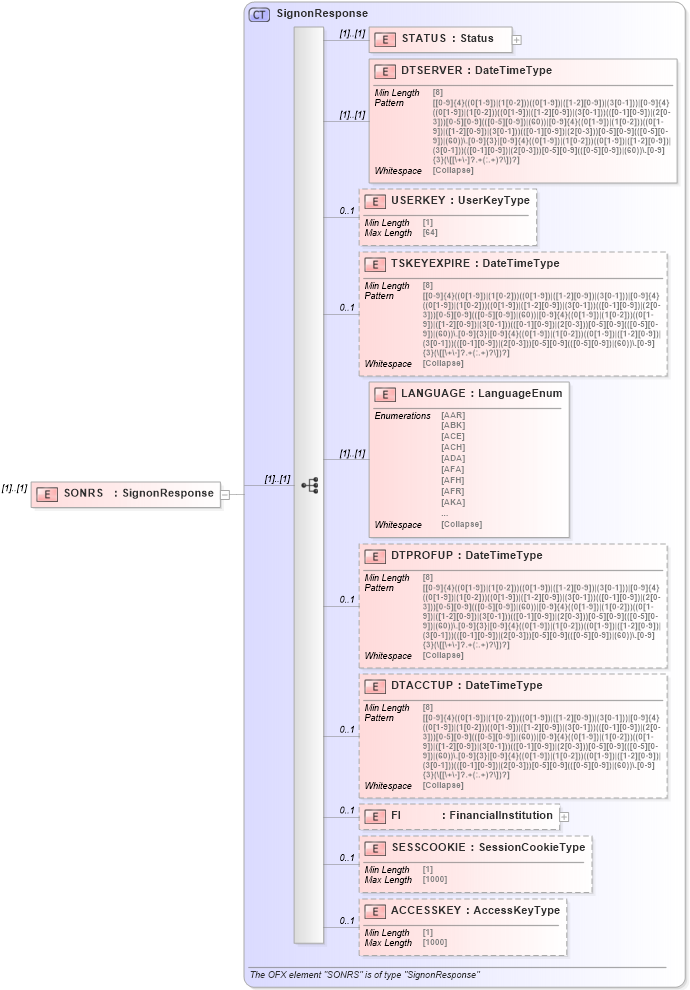

Collapse XSD Schema Diagram:
Drilldown into ACCESSKEY in schema ofx_signon_messages_xsd Drilldown into SESSCOOKIE in schema ofx_signon_messages_xsd Drilldown into FI in schema ofx_signon_messages_xsd Drilldown into DTACCTUP in schema ofx_signon_messages_xsd Drilldown into DTPROFUP in schema ofx_signon_messages_xsd Drilldown into LANGUAGE in schema ofx_signon_messages_xsd Drilldown into TSKEYEXPIRE in schema ofx_signon_messages_xsd Drilldown into USERKEY in schema ofx_signon_messages_xsd Drilldown into DTSERVER in schema ofx_signon_messages_xsd Drilldown into STATUS in schema ofx_signon_messages_xsd Drilldown into SignonResponse in schema ofx_signon_messages_xsdXSD Diagram of SONRS in schema ofx3_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="SONRS" type="ofx:SignonResponse" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
STATUS ofx:STATUS (1) (1)
DTSERVER ofx:DTSERVER (1) (1)
USERKEY ofx:USERKEY 0 1
TSKEYEXPIRE ofx:TSKEYEXPIRE 0 1
LANGUAGE ofx:LANGUAGE (1) (1)
DTPROFUP ofx:DTPROFUP 0 1
DTACCTUP ofx:DTACCTUP 0 1
FI ofx:FI 0 1
SESSCOOKIE ofx:SESSCOOKIE 0 1
ACCESSKEY ofx:ACCESSKEY 0 1
Collapse Derivation Tree:
