Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: TaxW2_V200
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractTaxW2
Containing Schema: OFX_TaxW2.xsd
Abstract
Documentation:
The OFX element "TAXW2_V200" is of type "TaxW2_V200"

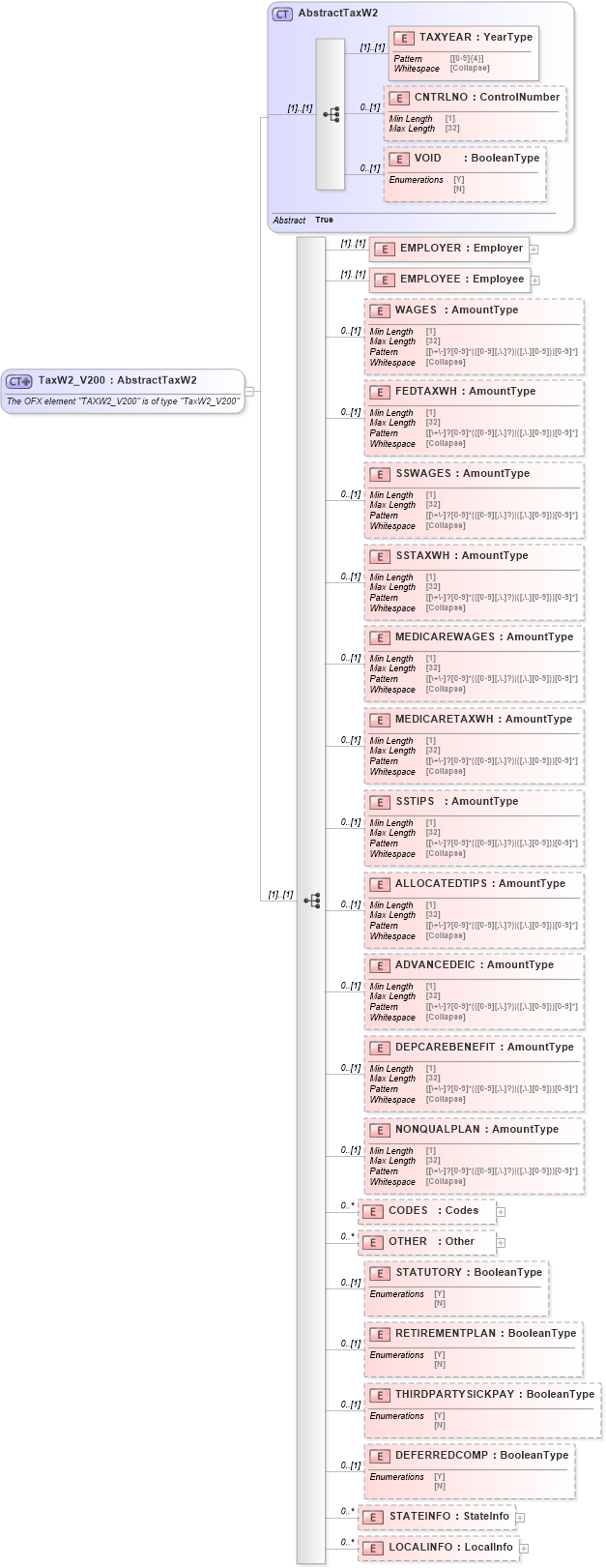

Collapse XSD Schema Diagram:
Drilldown into LOCALINFO in schema ofx_taxw2_xsd Drilldown into STATEINFO in schema ofx_taxw2_xsd Drilldown into DEFERREDCOMP in schema ofx_taxw2_xsd Drilldown into THIRDPARTYSICKPAY in schema ofx_taxw2_xsd Drilldown into RETIREMENTPLAN in schema ofx_taxw2_xsd Drilldown into STATUTORY in schema ofx_taxw2_xsd Drilldown into OTHER in schema ofx_taxw2_xsd Drilldown into CODES in schema ofx_taxw2_xsd Drilldown into NONQUALPLAN in schema ofx_taxw2_xsd Drilldown into DEPCAREBENEFIT in schema ofx_taxw2_xsd Drilldown into ADVANCEDEIC in schema ofx_taxw2_xsd Drilldown into ALLOCATEDTIPS in schema ofx_taxw2_xsd Drilldown into SSTIPS in schema ofx_taxw2_xsd Drilldown into MEDICARETAXWH in schema ofx_taxw2_xsd Drilldown into MEDICAREWAGES in schema ofx_taxw2_xsd Drilldown into SSTAXWH in schema ofx_taxw2_xsd Drilldown into SSWAGES in schema ofx_taxw2_xsd Drilldown into FEDTAXWH in schema ofx_taxw2_xsd Drilldown into WAGES in schema ofx_taxw2_xsd Drilldown into EMPLOYEE in schema ofx_taxw2_xsd Drilldown into EMPLOYER in schema ofx_taxw2_xsd Drilldown into VOID in schema ofx_taxw2_xsd Drilldown into CNTRLNO in schema ofx_taxw2_xsd Drilldown into TAXYEAR in schema ofx_taxw2_xsd Drilldown into AbstractTaxW2 in schema ofx_taxw2_xsdXSD Diagram of TaxW2_V200 in schema ofx_taxw2_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="TaxW2_V200">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "TAXW2_V200" is of type "TaxW2_V200"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractTaxW2">
            <xsd:sequence>
                <xsd:element name="EMPLOYER" type="ofx:Employer" />
                <xsd:element name="EMPLOYEE" type="ofx:Employee" />
                <xsd:element name="WAGES" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="FEDTAXWH" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="SSWAGES" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="SSTAXWH" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="MEDICAREWAGES" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="MEDICARETAXWH" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="SSTIPS" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="ALLOCATEDTIPS" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="ADVANCEDEIC" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="DEPCAREBENEFIT" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="NONQUALPLAN" type="ofx:AmountType" minOccurs="0" />
                <xsd:element name="CODES" type="ofx:Codes" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="OTHER" type="ofx:Other" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="STATUTORY" type="ofx:BooleanType" minOccurs="0" />
                <xsd:element name="RETIREMENTPLAN" type="ofx:BooleanType" minOccurs="0" />
                <xsd:element name="THIRDPARTYSICKPAY" type="ofx:BooleanType" minOccurs="0" />
                <xsd:element name="DEFERREDCOMP" type="ofx:BooleanType" minOccurs="0" />
                <xsd:element name="STATEINFO" type="ofx:StateInfo" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="LOCALINFO" type="ofx:LocalInfo" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TAXYEAR ofx:TAXYEAR (1) (1)
CNTRLNO ofx:CNTRLNO 0 (1)
VOID ofx:VOID 0 (1)
EMPLOYER ofx:EMPLOYER (1) (1)
EMPLOYEE ofx:EMPLOYEE (1) (1)
WAGES ofx:WAGES 0 (1)
FEDTAXWH ofx:FEDTAXWH 0 (1)
SSWAGES ofx:SSWAGES 0 (1)
SSTAXWH ofx:SSTAXWH 0 (1)
MEDICAREWAGES ofx:MEDICAREWAGES 0 (1)
MEDICARETAXWH ofx:MEDICARETAXWH 0 (1)
SSTIPS ofx:SSTIPS 0 (1)
ALLOCATEDTIPS ofx:ALLOCATEDTIPS 0 (1)
ADVANCEDEIC ofx:ADVANCEDEIC 0 (1)
DEPCAREBENEFIT ofx:DEPCAREBENEFIT 0 (1)
NONQUALPLAN ofx:NONQUALPLAN 0 (1)
CODES ofx:CODES 0 unbounded
OTHER ofx:OTHER 0 unbounded
STATUTORY ofx:STATUTORY 0 (1)
RETIREMENTPLAN ofx:RETIREMENTPLAN 0 (1)
THIRDPARTYSICKPAY ofx:THIRDPARTYSICKPAY 0 (1)
DEFERREDCOMP ofx:DEFERREDCOMP 0 (1)
STATEINFO ofx:STATEINFO 0 unbounded
LOCALINFO ofx:LOCALINFO 0 unbounded
Collapse Derivation Tree:
Collapse References:
ofx:TAXW2_V200
