Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: WireRequest
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractWireRequest
Containing Schema: OFX_WireTransfer_Messages.xsd
Abstract
Documentation:
The OFX element "WIRERQ" is of type "WireRequest"

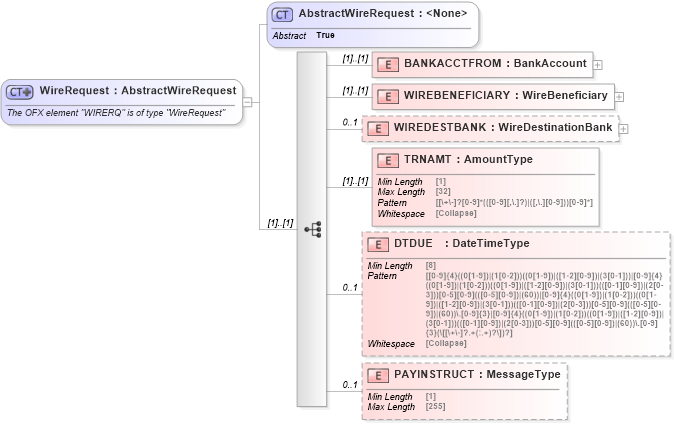

Collapse XSD Schema Diagram:
Drilldown into PAYINSTRUCT in schema ofx_wiretransfer_messages_xsd Drilldown into DTDUE in schema ofx_wiretransfer_messages_xsd Drilldown into TRNAMT in schema ofx_wiretransfer_messages_xsd Drilldown into WIREDESTBANK in schema ofx_wiretransfer_messages_xsd Drilldown into WIREBENEFICIARY in schema ofx_wiretransfer_messages_xsd Drilldown into BANKACCTFROM in schema ofx_wiretransfer_messages_xsd Drilldown into AbstractWireRequest in schema ofx_wiretransfer_messages_xsdXSD Diagram of WireRequest in schema ofx_wiretransfer_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="WireRequest">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "WIRERQ" is of type "WireRequest"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractWireRequest">
            <xsd:sequence>
                <xsd:element name="BANKACCTFROM" type="ofx:BankAccount" />
                <xsd:element name="WIREBENEFICIARY" type="ofx:WireBeneficiary" />
                <xsd:element name="WIREDESTBANK" type="ofx:WireDestinationBank" minOccurs="0" maxOccurs="1" />
                <xsd:element name="TRNAMT" type="ofx:AmountType" />
                <xsd:element name="DTDUE" type="ofx:DateTimeType" minOccurs="0" maxOccurs="1" />
                <xsd:element name="PAYINSTRUCT" type="ofx:MessageType" minOccurs="0" maxOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BANKACCTFROM ofx:BANKACCTFROM (1) (1)
WIREBENEFICIARY ofx:WIREBENEFICIARY (1) (1)
WIREDESTBANK ofx:WIREDESTBANK 0 1
TRNAMT ofx:TRNAMT (1) (1)
DTDUE ofx:DTDUE 0 1
PAYINSTRUCT ofx:PAYINSTRUCT 0 1
Collapse Derivation Tree:
Collapse References:
ofx:WIRERQ
