Definition Type: Element
Name: BookBlockEdgeTrim
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

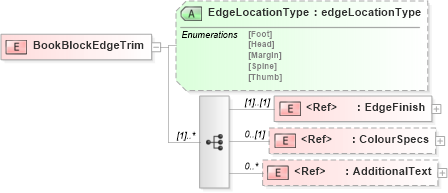

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into ColourSpecs in schema papinetcommondefsv2r40_xsd Drilldown into EdgeFinish in schema papinetcommondefsv2r40_xsd Drilldown into EdgeLocationType in schema papinetcommondefsv2r40_xsdXSD Diagram of BookBlockEdgeTrim in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="BookBlockEdgeTrim">
    <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
            <xs:element ref="EdgeFinish" />
            <xs:element ref="ColourSpecs" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="EdgeLocationType" type="edgeLocationType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EdgeFinish pn:EdgeFinish (1) (1)
ColourSpecs pn:ColourSpecs 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
EdgeLocationType pn:EdgeLocationType (Optional)
