Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: CalendarHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: CalendarV2R40.xsd
Abstract

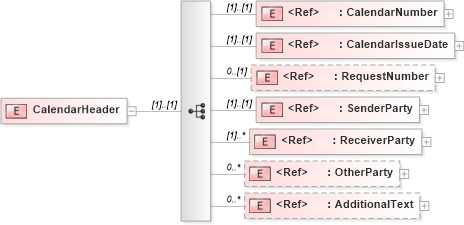

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into RequestNumber in schema papinetcommondefsv2r40_xsd Drilldown into CalendarIssueDate in schema papinetcommondefsv2r40_xsd Drilldown into CalendarNumber in schema papinetcommondefsv2r40_xsdXSD Diagram of CalendarHeader in schema calendarv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CalendarHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CalendarNumber" />
            <xs:element ref="CalendarIssueDate" />
            <xs:element ref="RequestNumber" minOccurs="0" />
            <xs:element ref="SenderParty" />
            <xs:element ref="ReceiverParty" maxOccurs="unbounded" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CalendarNumber pn:CalendarNumber (1) (1)
CalendarIssueDate pn:CalendarIssueDate (1) (1)
RequestNumber pn:RequestNumber 0 (1)
SenderParty pn:SenderParty (1) (1)
ReceiverParty pn:ReceiverParty (1) unbounded
OtherParty pn:OtherParty 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
