Definition Type: Element
Name: CallOffInformation
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

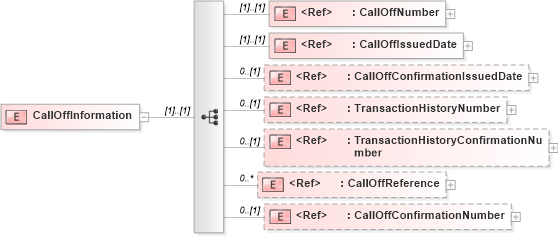

Collapse XSD Schema Diagram:
Drilldown into CallOffConfirmationNumber in schema papinetcommondefsv2r40_xsd Drilldown into CallOffReference in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryConfirmationNumber in schema papinetcommondefsv2r40_xsd Drilldown into TransactionHistoryNumber in schema papinetcommondefsv2r40_xsd Drilldown into CallOffConfirmationIssuedDate in schema papinetcommondefsv2r40_xsd Drilldown into CallOffIssuedDate in schema papinetcommondefsv2r40_xsd Drilldown into CallOffNumber in schema papinetcommondefsv2r40_xsdXSD Diagram of CallOffInformation in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CallOffInformation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CallOffNumber" />
            <xs:element ref="CallOffIssuedDate" />
            <xs:element ref="CallOffConfirmationIssuedDate" minOccurs="0" />
            <xs:element ref="TransactionHistoryNumber" minOccurs="0" />
            <xs:element ref="TransactionHistoryConfirmationNumber" minOccurs="0" />
            <xs:element ref="CallOffReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="CallOffConfirmationNumber" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CallOffNumber pn:CallOffNumber (1) (1)
CallOffIssuedDate pn:CallOffIssuedDate (1) (1)
CallOffConfirmationIssuedDate pn:CallOffConfirmationIssuedDate 0 (1)
TransactionHistoryNumber pn:TransactionHistoryNumber 0 (1)
TransactionHistoryConfirmationNumber pn:TransactionHistoryConfirmationNumber 0 (1)
CallOffReference pn:CallOffReference 0 unbounded
CallOffConfirmationNumber pn:CallOffConfirmationNumber 0 (1)
