Definition Type: Element
Name: CaseBoardMaterials
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

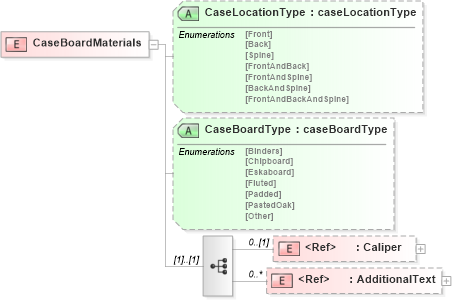

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into Caliper in schema papinetcommondefsv2r40_xsd Drilldown into CaseBoardType in schema papinetcommondefsv2r40_xsd Drilldown into CaseLocationType in schema papinetcommondefsv2r40_xsdXSD Diagram of CaseBoardMaterials in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CaseBoardMaterials">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Caliper" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="CaseLocationType" type="caseLocationType" />
        <xs:attribute name="CaseBoardType" type="caseBoardType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Caliper pn:Caliper 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
CaseLocationType pn:CaseLocationType (Optional)
CaseBoardType pn:CaseBoardType (Optional)
