Definition Type: Element
Name: CassetteLabelCharacteristics
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

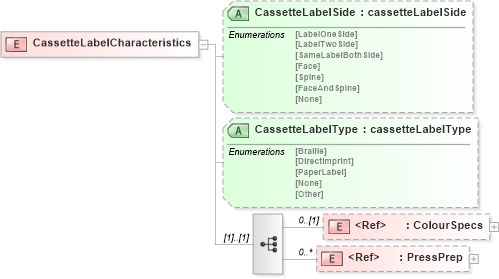

Collapse XSD Schema Diagram:
Drilldown into PressPrep in schema papinetcommondefsv2r40_xsd Drilldown into ColourSpecs in schema papinetcommondefsv2r40_xsd Drilldown into CassetteLabelType in schema papinetcommondefsv2r40_xsd Drilldown into CassetteLabelSide in schema papinetcommondefsv2r40_xsdXSD Diagram of CassetteLabelCharacteristics in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CassetteLabelCharacteristics">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ColourSpecs" minOccurs="0" />
            <xs:element ref="PressPrep" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="CassetteLabelSide" type="cassetteLabelSide" />
        <xs:attribute name="CassetteLabelType" type="cassetteLabelType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ColourSpecs pn:ColourSpecs 0 (1)
PressPrep pn:PressPrep 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
CassetteLabelSide pn:CassetteLabelSide (Optional)
CassetteLabelType pn:CassetteLabelType (Optional)
