Definition Type: Element
Name: Charge
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

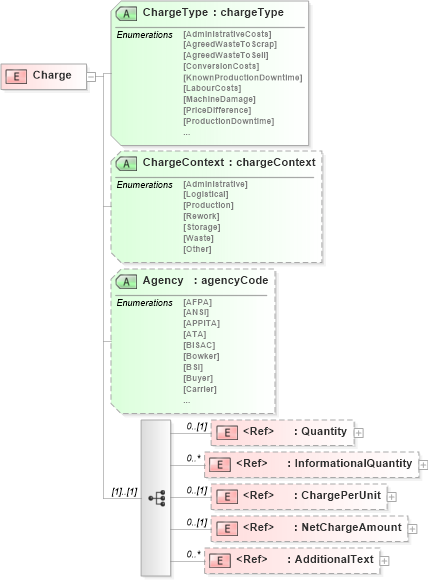

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into NetChargeAmount in schema papinetcommondefsv2r40_xsd Drilldown into ChargePerUnit in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into Agency in schema papinetcommondefsv2r40_xsd Drilldown into ChargeContext in schema papinetcommondefsv2r40_xsd Drilldown into ChargeType in schema papinetcommondefsv2r40_xsdXSD Diagram of Charge in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Charge">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Quantity" minOccurs="0" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="ChargePerUnit" minOccurs="0" />
            <xs:element ref="NetChargeAmount" minOccurs="0" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="ChargeType" type="chargeType" use="required" />
        <xs:attribute name="ChargeContext" type="chargeContext" />
        <xs:attribute name="Agency" type="agencyCode" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Quantity pn:Quantity 0 (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
ChargePerUnit pn:ChargePerUnit 0 (1)
NetChargeAmount pn:NetChargeAmount 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ChargeType pn:ChargeType Required
ChargeContext pn:ChargeContext (Optional)
Agency pn:Agency (Optional)
