Definition Type: Element
Name: CoLoading
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract
Collapse XSD Schema Diagram:

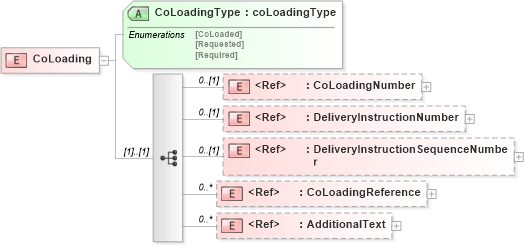

Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into CoLoadingReference in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionSequenceNumber in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryInstructionNumber in schema papinetcommondefsv2r40_xsd Drilldown into CoLoadingNumber in schema papinetcommondefsv2r40_xsd Drilldown into CoLoadingType in schema papinetcommondefsv2r40_xsdXSD Diagram of CoLoading in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CoLoading">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CoLoadingNumber" minOccurs="0" />
            <xs:element ref="DeliveryInstructionNumber" minOccurs="0" />
            <xs:element ref="DeliveryInstructionSequenceNumber" minOccurs="0" />
            <xs:element ref="CoLoadingReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="CoLoadingType" type="coLoadingType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CoLoadingNumber pn:CoLoadingNumber 0 (1)
DeliveryInstructionNumber pn:DeliveryInstructionNumber 0 (1)
DeliveryInstructionSequenceNumber pn:DeliveryInstructionSequenceNumber 0 (1)
CoLoadingReference pn:CoLoadingReference 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
CoLoadingType pn:CoLoadingType Required
