Definition Type: Element
Name: ColourDetail
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

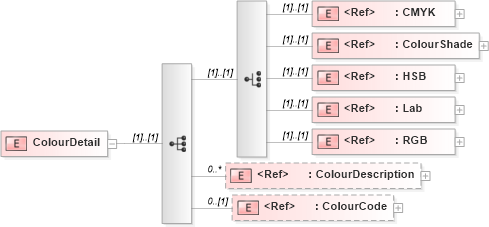

Collapse XSD Schema Diagram:
Drilldown into ColourCode in schema papinetcommondefsv2r40_xsd Drilldown into ColourDescription in schema papinetcommondefsv2r40_xsd Drilldown into RGB in schema papinetcommondefsv2r40_xsd Drilldown into Lab in schema papinetcommondefsv2r40_xsd Drilldown into HSB in schema papinetcommondefsv2r40_xsd Drilldown into ColourShade in schema papinetcommondefsv2r40_xsd Drilldown into CMYK in schema papinetcommondefsv2r40_xsdXSD Diagram of ColourDetail in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ColourDetail">
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element ref="CMYK" />
                <xs:element ref="ColourShade" />
                <xs:element ref="HSB" />
                <xs:element ref="Lab" />
                <xs:element ref="RGB" />
            </xs:choice>
            <xs:element ref="ColourDescription" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="ColourCode" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CMYK pn:CMYK (1) (1)
ColourShade pn:ColourShade (1) (1)
HSB pn:HSB (1) (1)
Lab pn:Lab (1) (1)
RGB pn:RGB (1) (1)
ColourDescription pn:ColourDescription 0 unbounded
ColourCode pn:ColourCode 0 (1)
